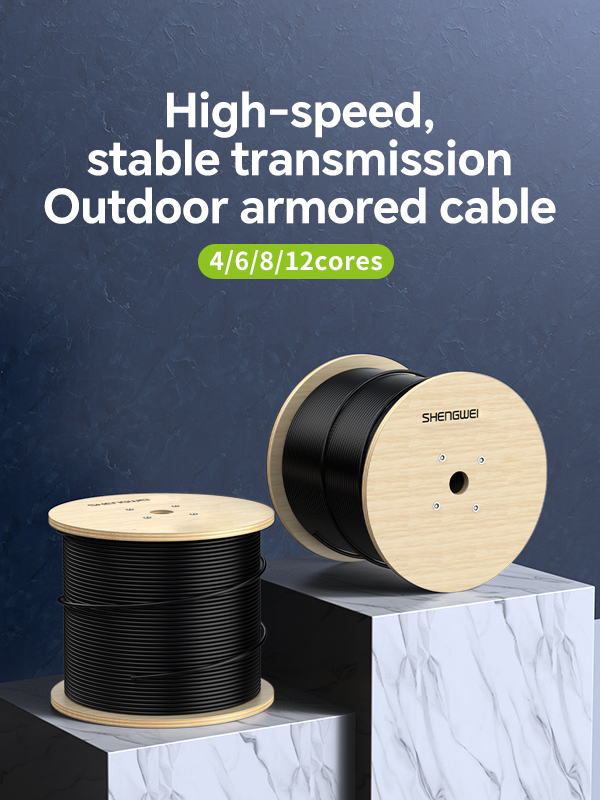

GYTA Heavy Armored Direct Burial Optical Cable (4-144 Cores)
The GYTA heavy-armored direct burial optical cable is designed for harsh outdoor environments requiring high mechanical strength and moisture resistance. With a stranded loose tube structure and double steel tape armor, it supports fiber counts from 4 to 144 cores, making it ideal for long-distance backbone networks, access networks, and direct burial applications.
Flexible Core Counts: Available from 4, 6, 8, 12, 24, 48, 72, 96, to 144 cores to meet various project requirements.
Heavy Double Armor: Corrugated steel tape double-armored construction provides excellent crush resistance, tensile strength, and rodent protection, perfect for direct burial.
Single Mode Fiber: Compatible with G.652D standard, ensuring low attenuation and high bandwidth for long-distance transmission.
Stranded Loose Tube Design: Optical fibers are placed in loose tubes around a central strength member, improving temperature performance and tensile stability.
Waterproof & Anti-Moisture: Water-blocking compound or yarn inside the cable core prevents water penetration, ensuring long-term reliability.
Durable Outer Sheath: Black polyethylene (PE) sheath offers high resistance to abrasion, corrosion, and UV radiation, suitable for direct burial in various soil conditions.
Product Description
Our factory supplies Heavy Armored Loose Tube Direct Burial Single-mode Cable (GYTA, 4-144 cores, 1m), featuring a sturdy armored loose tube structure with excellent crush and corrosion resistance for stable single-mode transmission in underground harsh environments. This 4-144 cores 1m GYTA cable meets international fiber optic standards, supports bulk wholesale engineering splicing needs, and is a reliable choice for telecom distributors and construction integrators, solving direct burial cabling durability demands for outdoor network infrastructure projects.
Technical Sheet
| Specification Item | Details |
| Product Model | GYTA (Direct Burial Series) -BGYTA-12-1M |
| Core Count | 4-144 cores (customizable), 12-core shown as example |
| Cable Length | 1m (per unit, pre-cut) |
| Optical Fiber Type | Single-mode (SM), G.652.D standard, Corning/YOFC compatible |

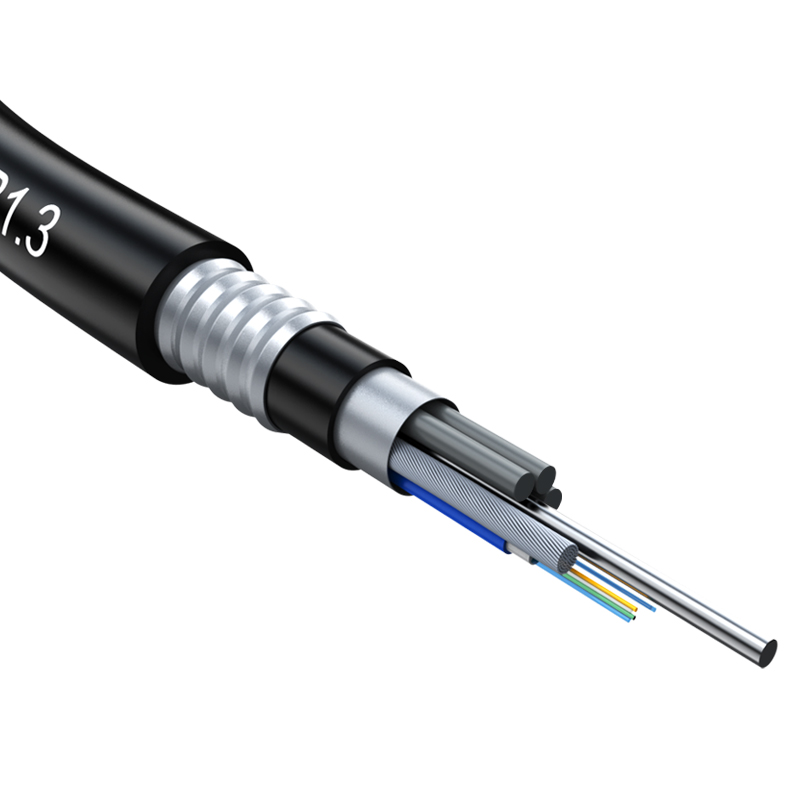

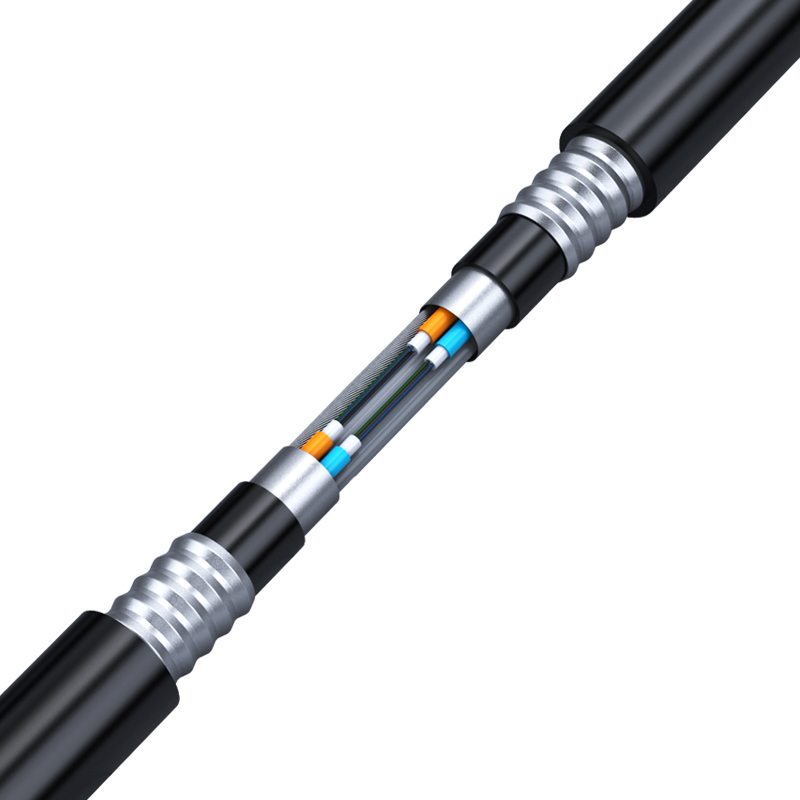

| Cable Structure | Loose tube stranded, FRP strength member, steel tape armored, PE outer sheath |
| Loose Tube Material | PBT (Polybutylene Terephthalate), water-blocking gel filled |
| Strength Member | FRP (Fiberglass Reinforced Plastic), anti-corrosion & high tensile |
| Armoring Layer | Corrugated steel tape armor (single layer, longitudinally wrapped), dual-sided coated for corrosion resistance, direct burial grade |
| Outer Sheath Material | HDPE (High Density Polyethylene), black, UV-resistant, direct burial grade |
| Operating Wavelength | 1310nm, 1550nm |
| Attenuation (Max)@1310nm | 0.36 dB/km |
| Attenuation (Max)@1550nm | 0.22 dB/km |
| Tensile Strength (Short-term) | ≥1200 N |
| Tensile Strength (Long-term) | ≥600 N |
| Crush Resistance | ≥3000 N/100mm |
| Bending Radius (Static) | ≥10×cable outer diameter |
| Bending Radius (Dynamic) | ≥20×cable outer diameter |
| Operating Temperature Range | -40℃ ~ +70℃ |
| Storage Temperature Range | -50℃ ~ +80℃ |
| Water Blocking Performance | Full cable water-blocking (gel + water-swellable tape), IEC 60794-1 compliant |
| Application Scenarios | Direct burial (underground), outdoor short-distance connections, municipal engineering, building interconnection, harsh environment deployments |
| Compliance Standards | IEC 60794-1, GB/T 7424.2, ITU-T G.652, RoHS |
| Cable Outer Diameter (Approx) | 13.5 ± 0.5 mm |
| Weight (Approx) | 0.22 ± 0.02 kg/1m |
| Termination Option | Unterminated (raw fiber); SC/LC/FC connector pre-installed optional (contact sales) |
| Key Advantages | Direct burial ready, wide temperature range (-40℃ to +70℃), high crush resistance (≥3000N), full water-blocking design, compatible with G.652.D single-mode fiber. |
Detail Display
Product Applications
The Heavy Armored Loose Tube Direct Burial Single-mode Cable (GYTA, 4-144 cores, 1m) is suitable for:
Urban telecom backbone networks – 1m fixed length enables quick on-site splicing for underground connections.
Residential and commercial park cabling – Flexible core options support different user densities with armored underground protection.
Rural and remote broadband projects – Adapts to complex terrain, providing reliable network coverage for multiple users.
Municipal infrastructure cabling – Ideal for subway, road, and pipeline projects, resisting mechanical damage during construction and operation.
More Details
GYTA 4-144 Cores Direct Burial Cable Features
This heavy armored loose tube single-mode cable resists moisture, pressure, and rodents. The flexible 4-144 cores design suits various network scales, while the 1m length enables quick on-site splicing for direct burial projects.
GYTA Cable Specifications
Standard single-mode fiber (G.652.D), loose tube stranded structure, FRP strength member, steel tape armor, and HDPE outer sheath. Supports 4 to 144 cores, 1m pre-cut length, and operates from -40℃ to +70℃.
GYTA Cable Key Benefits
Factory direct supply supports bulk orders. Flexible core options help reduce inventory costs. Armored design extends cable life in harsh underground environments, lowering long-term maintenance expenses.
