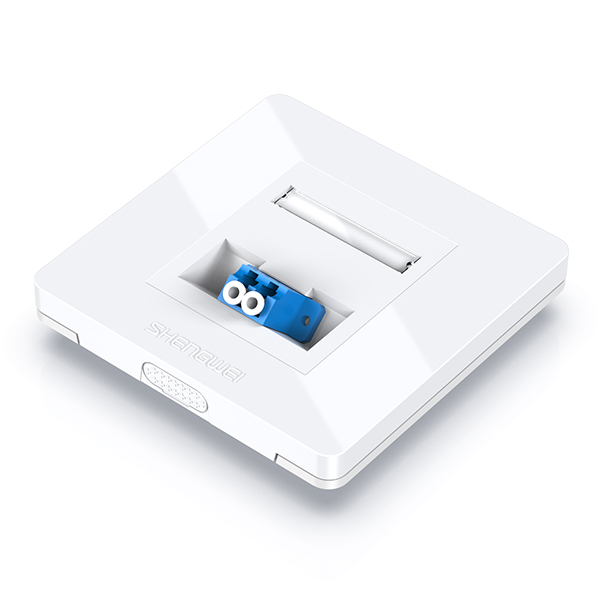

86 Type Angled Fiber Optic Wall Plate with Single LC Port
86 type angled fiber optic wall plate with single LC duplex port, ideal for FTTH and indoor structured cabling, supplied wholesale.
1. 15° angled design reduces fiber bending stress and signal loss
2. Standard 86×86mm size fits universal wall junction boxes
3. Pre-installed LC duplex adapter, ≤0.3dB low insertion loss
4. Flame-retardant ABS housing, RoHS/CE/FCC certified
5. Neat hidden cabling, ideal for FTTH and office wall outlets
Description
The 86 Type Angled Fiber Optic Wall Plate with Single LC Port is a professional wall-mounted fiber outlet supplied directly from our fiber optic accessories manufacturer. Featuring an inclined port surface, it effectively reduces fiber bending loss and protects LC connectors from physical stress during daily use. The standard 86×86mm size fits universal wall junction boxes, enabling quick installation across offices, residential buildings, hotels, and FTTH access points. Built with flame-retardant ABS housing and a pre-installed LC duplex adapter, this faceplate ensures neat indoor cabling and stable Gigabit signal transmission. We support wholesale, bulk orders, and OEM customization for global distributors, contractors, and ISP integrators.
Technical Data Sheet
| Item | Specifications |
| Product Name | Angled Fiber Optic Wall Plate |
| Product Model | CMBLC01H |
| Design Type | Angled (Inclined) Structure, Wall-mounted |
| Material | High-Quality ABS Plastic, Flame-Retardant & Durable |
| Size | Standard 86mm×86mm (Fits Universal Wall Boxes) |
| Fiber Port | 1-2 Ports, LC/SC Connector (Optional) |
| Insertion Loss | ≤0.3dB (UPC); ≤0.2dB (APC) |
| Return Loss | ≥50dB (UPC); ≥60dB (APC) |
| Operating Temperature | -10℃ ~ +60℃ |
| Color | White, Gray (Customizable According to Demand) |
| Application | Office Buildings, High-End Residences, Hospitals, Labs, Hotels, FTTH Access Points |
| Certification | RoHS, CE, FCC |
| Supply Type | Wholesale, Bulk, Customizable Port & Color |
Detail Display
Applications
The 86 Type Angled Fiber Optic Wall Plate is engineered for indoor structured cabling scenarios where neat fiber routing and signal reliability are critical.
1. Office Building Workstations: Provides clean, wall-mounted LC fiber outlets at every desk, eliminating exposed cables and protecting connectors from accidental disconnection in enterprise networks.
2. FTTH Residential Access Points: Serves as the optical termination interface inside high-end apartments, villas, and smart homes, matching wall decoration while ensuring stable Fiber-to-the-Home connections.
3. Hotel Guest Rooms: Delivers a discreet, designer-friendly fiber wall outlet behind TV cabinets and bedside panels, supporting in-room IPTV, Wi-Fi backhaul, and high-speed internet services.
4. Hospitals & Precision Laboratories: Supports low-interference fiber access for medical imaging systems and lab equipment that require electromagnetic isolation and stable bandwidth.
More Details
Angled Fiber Optic Wall Plate Features
The angled (inclined) design is the core engineering advantage of this 86-type fiber faceplate. Unlike flat faceplates that force fibers into sharp 90° bends behind the wall, the inclined cavity allows the LC connector to seat at an ergonomic angle, reducing bending radius stress and protecting the optical core from microbend loss. The flame-retardant ABS housing meets international safety standards, while the pre-installed LC/UPC duplex adapter ensures plug-and-play deployment for installers.
Fiber Optic Faceplate Installation Guide
Installation requires a standard 86-type wall junction box (pre-embedded in most modern construction). After routing the indoor fiber drop cable through the box, terminate the cable with an LC connector, plug it into the rear of the pre-installed adapter, and secure the faceplate to the box using the two included M4 screws. The angled cavity automatically organizes the connector position for clean front-side appearance.
