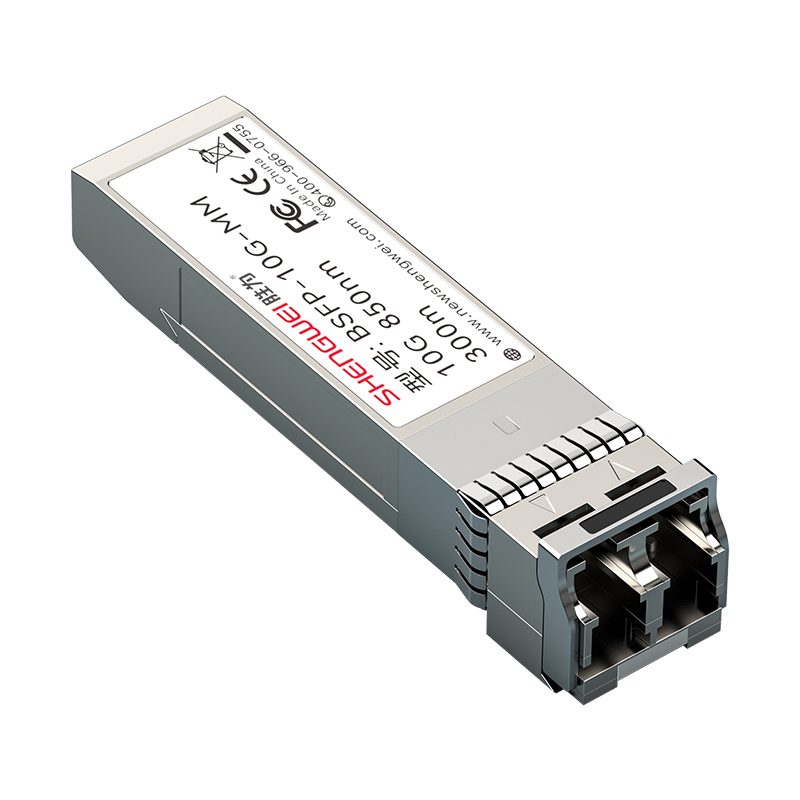

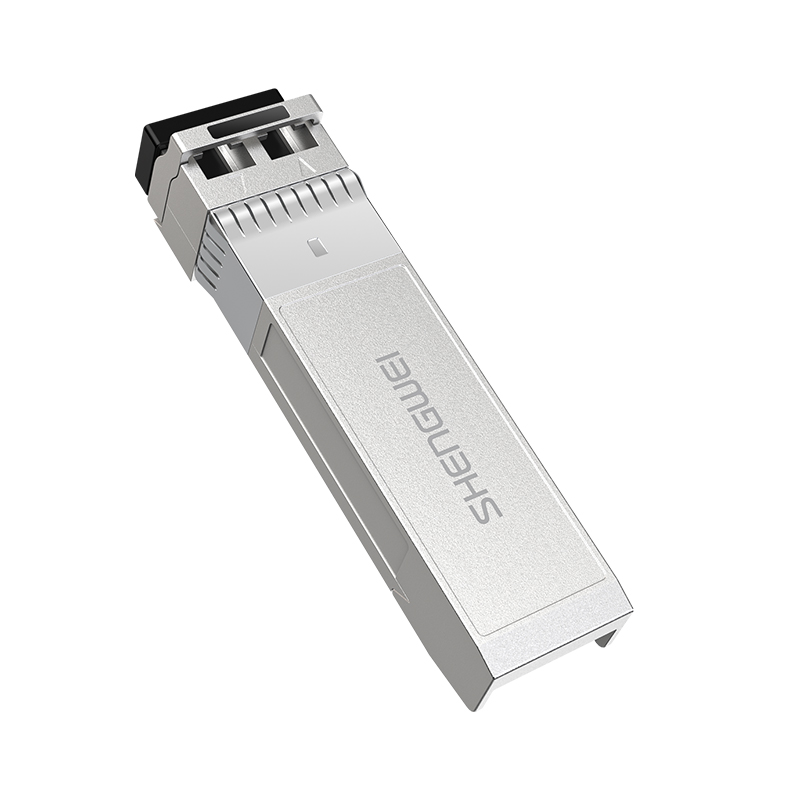

10GBase-SR SFP+ Multimode LC Fiber Transceiver 850nm 300m DDM

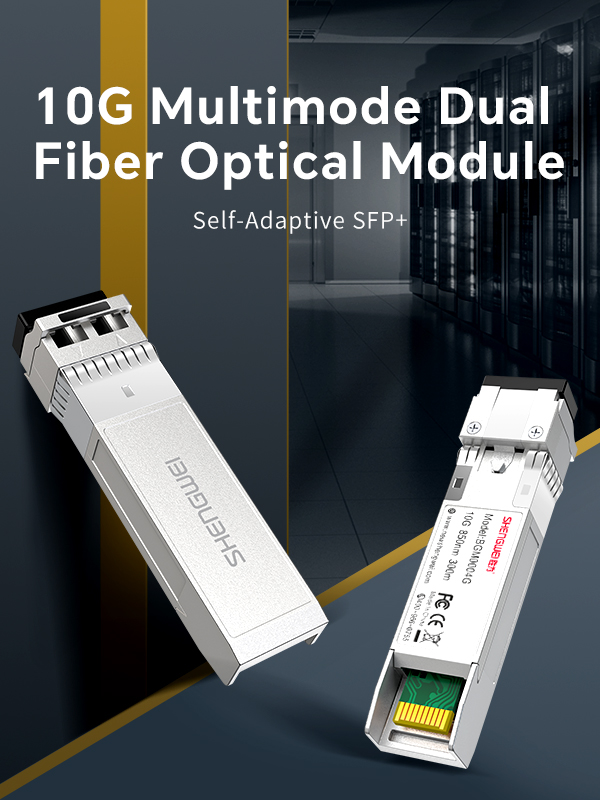

10G SFP+ Multimode Dual Fiber Module delivers high-speed data transmission for data centers and enterprise networks.
10Gbps High-Speed: 10GBase-SR, 850nm, up to 300m over OM3 multimode fiber.
DDM Diagnostics: Real-time monitoring of optical power, temperature and voltage.

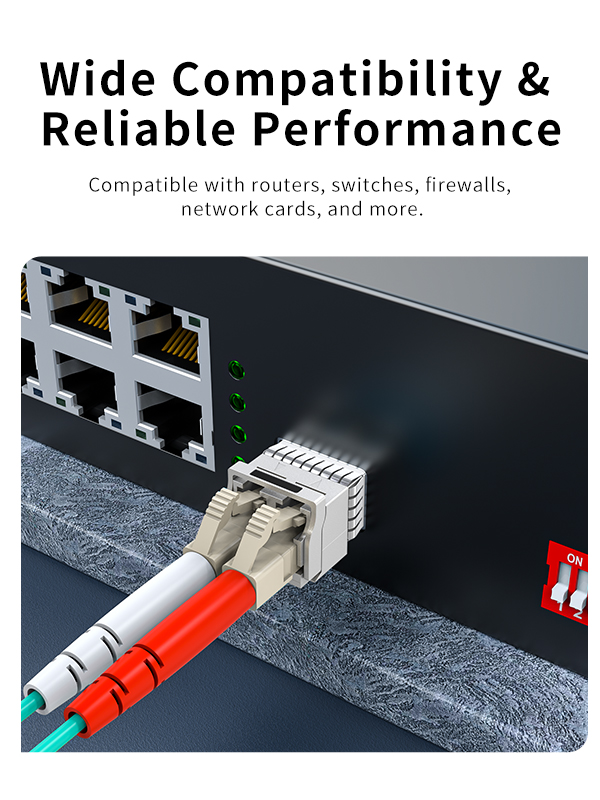

Wide Compatibility: Works with Cisco, Huawei, H3C, Intel, Juniper, Dell, HP and more.

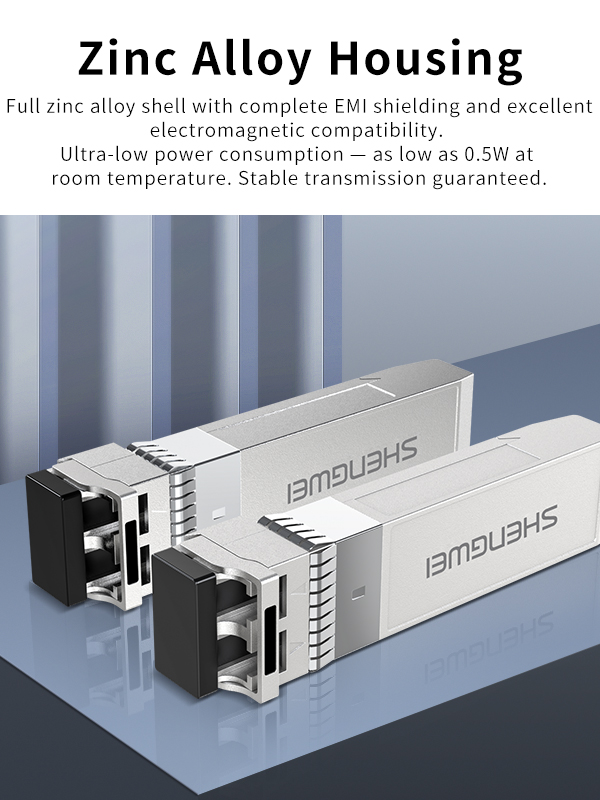

Durable & Low Power: Zinc alloy housing, gold-plated contacts, < 0.5W power consumption.
Hot-Swappable: Plug-and-play SFP+ design, no network downtime during installation.
Fiber Optic Transceiver Description
The 10GBase-SR SFP+ Multimode Fiber Transceiver delivers 10Gbps high-speed connectivity over OM3 fiber up to 300m at 850nm wavelength. Featuring built-in DDM diagnostics, LC duplex interface and under 0.5W power consumption, this hot-swappable SFP+ module ensures reliable performance for switches, routers and servers. Widely compatible with Cisco, Huawei, H3C, Intel and more, it is ideal for data center, campus network and enterprise LAN applications. As a trusted fiber optic module manufacturer, we offer competitive factory pricing for wholesale and bulk orders worldwide.
SFP+ Optical Transceiver Technical Data Sheet
| Parameter | Specification |
| Model | BSFP-10G-MM |
| Data Rate | 10.3Gbps (10GBASE-SR) |
| Wavelength | 850nm |
| Fiber Type | Multimode (MMF), OM3 50/125μm |
| Transmission Distance | Up to 300m |
| Connector | LC Duplex |
| Form Factor | SFP+, Hot-swappable |
| TX Power | -7 ~ -1 dBm |
| RX Sensitivity | ≤ -11.1 dBm |
| DDM/DOM | Supported |
| Power Consumption | < 0.5W |
| Operating Temperature | 0°C ~ +70°C (Commercial Grade) |
| Standards | IEEE 802.3ae, SFF-8431, SFF-8472 |
| Certifications | FCC, CE, RoHS |
| Compatibility | Cisco, Huawei, H3C, Intel, Juniper, Dell, HP, and more |
| Applications | Data centers, Enterprise LAN, Campus networks |

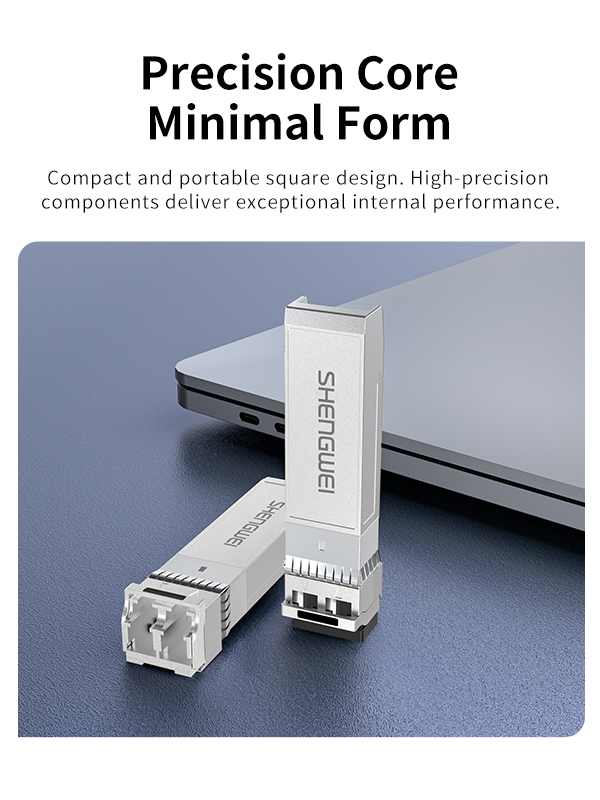

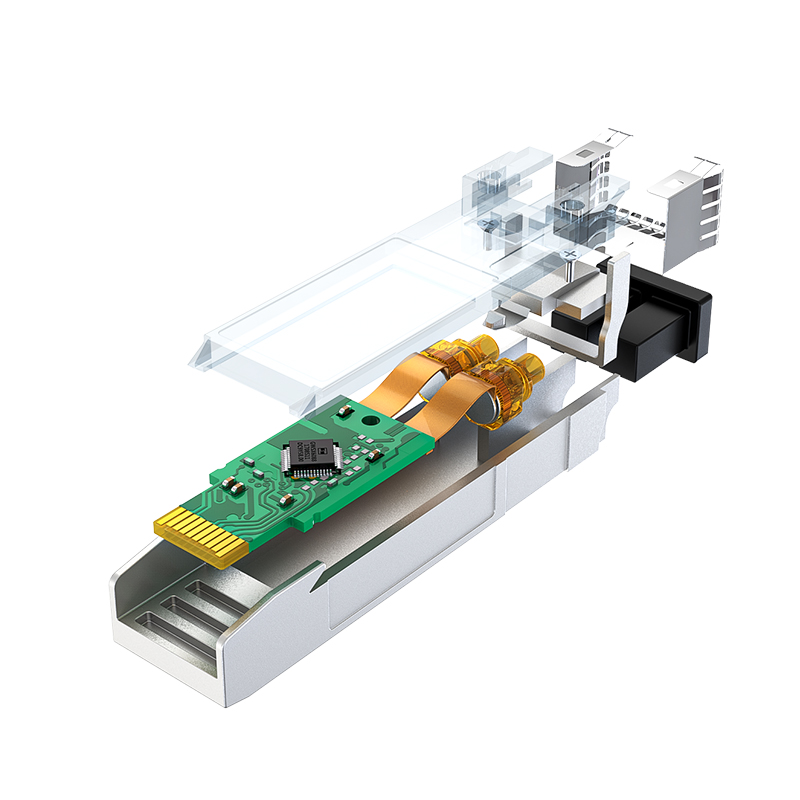

Detail Display
Fiber Optic Transceiver Applications
Data Center Interconnections
Ideal for high-speed 10Gbps links between servers, switches and storage devices. Supports low-latency, high-density transmission for cloud computing, virtualization and big data environments.
Enterprise LAN & Office Networks
Enables fast 10G backbone connections between office buildings, floors and departments over OM3 multimode fiber up to 300m, with hot-swappable plug-and-play deployment.
Campus Network Infrastructure
Connects core switches and distribution equipment across university and corporate campuses, providing reliable high-bandwidth support for research, education and daily operations.
Telecom Base Station & FTTH Access
Supports short-range fiber links in telecom base stations and fiber-to-the-home (FTTH) access nodes, delivering stable 10G performance with broad equipment compatibility.
More Details
Why Choose Our 10GBase-SR SFP+ Module
Every module undergoes 100% aging testing before shipment to ensure stable performance out of the box. We are a professional fiber optic transceiver manufacturer offering factory-direct pricing with MOQ flexibility for wholesale buyers, system integrators and global distributors. With 3-year warranty and dedicated technical support, we help you reduce procurement costs while maintaining enterprise-grade network reliability.
