Pre-Polished SC/UPC Fast Connector for FTTH Drop Cable
SHENGWEI SC/UPC fast connectors are pre-polished, tool-free fiber optic connectors with ≤0.3dB insertion loss, ideal for FTTH drop cable termination and on-site fiber repair.
Low Insertion Loss ≤0.3dB: Pre-polished ceramic ferrule delivers excellent optical performance with ≤0.3dB insertion loss and ≥45dB return loss for stable signal transmission.
Tool-Free 60-Second Installation: Mechanical splice design with pre-polished fiber stub enables quick, epoxy-free, fusion-free termination in under 60 seconds.

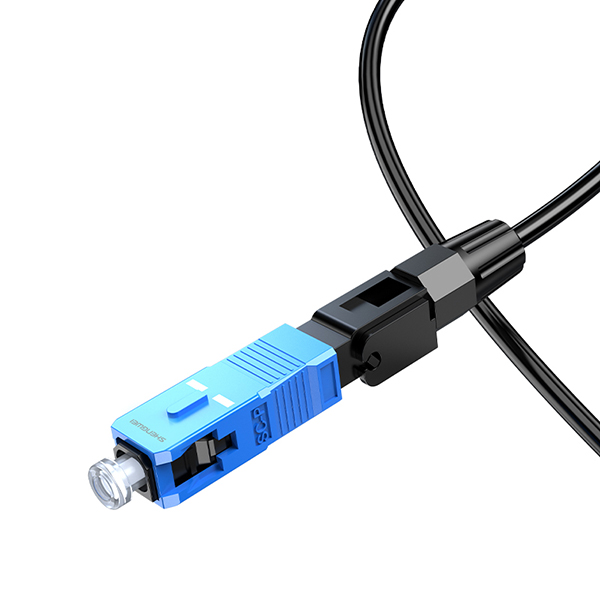

Universal Fiber Compatibility: Accepts 0.9mm, 2.0mm, and 3.0mm drop cables for both indoor and outdoor FTTH deployment scenarios.
Reusable PEI Construction: High-performance PEI housing supports up to 3 re-terminations, reducing material waste and lowering installation cost.
Fast Connector Description
The SC/UPC Fiber Optic Fast Connector is a field-installable mechanical splice connector designed for quick, reliable termination in FTTH drop cable installations and on-site fiber repairs. With ≤0.3dB insertion loss and ≥45dB return loss, it eliminates the need for fusion splicing or epoxy polishing — reducing labor time by up to 80% and cutting equipment costs significantly. As a leading fiber fast connector manufacturer in China, we wholesale these connectors in bulk packaging to telecom contractors, FTTH installers, system integrators, and distributors worldwide, supporting efficient fiber deployment with OEM customization available.

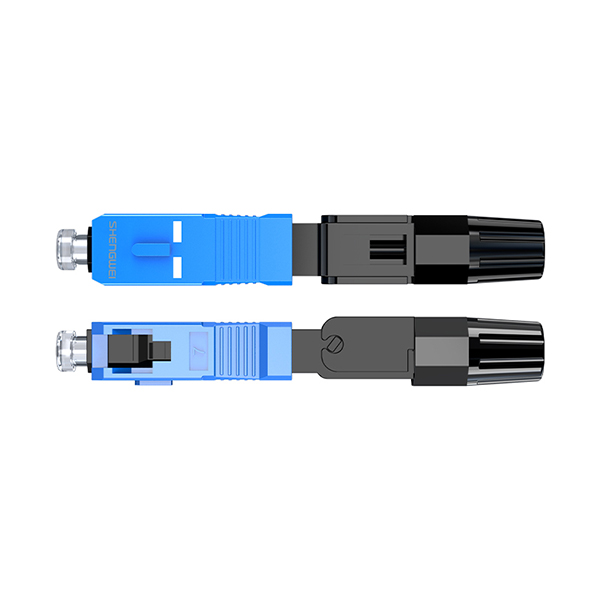

Detail Display
Fast Connector Technical Data Sheet
| Parameter | Specification |
| Model | OCS-410 |
| Connector Type | SC/UPC (Simplex) |
| Insertion Loss | ≤ 0.3 dB (Typical) |
| Return Loss | ≥ 45 dB (UPC) |
| Fiber Mode | Single-Mode (SM) & Multimode (MM) |
| Applicable Fiber | 0.9mm, 2.0mm, 3.0mm Drop Cable / Indoor Cable |
| Operating Temperature | -40°C to +85°C |
| Material | PEI Housing, Ceramic Ferrule |
| Mating Durability | ≥ 500 cycles |
| Packaging | 10 pieces per bag |
More Details
Field-Installable Connector Key Features

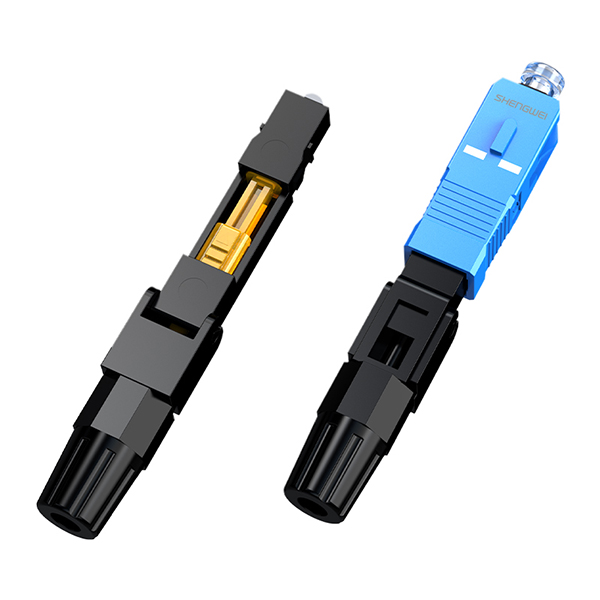

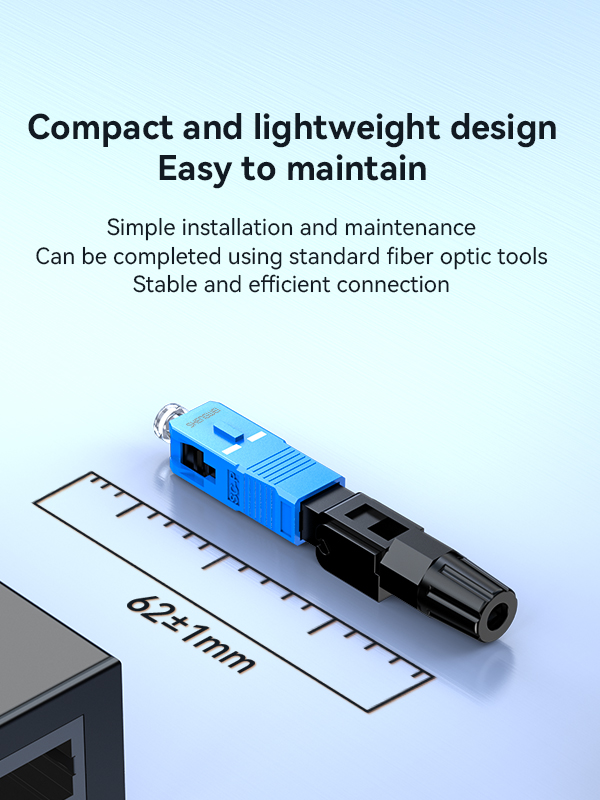

The SC/UPC Fast Connector features a pre-polished ceramic ferrule with an internal fiber stub and a precision V-groove mechanical splice mechanism. The clamp-based fiber alignment ensures consistent core alignment for ≤0.3dB low-loss performance. The connector body is molded from high-strength PEI material, providing robustness and resistance to environmental stress (-40°C to +85°C operating range). Its compact design allows for easy installation in tight spaces, while built-in fiber bend control reduces macro-bending loss. Compared to traditional fusion splicing, this fast connector reduces termination time by up to 80% and eliminates the need for expensive fusion splicer equipment.
