High-Density Optical Distribution Frame (ODF) China Manufacturer
Optical Distribution Frames (ODFs) are engineered with durable steel for central fiber management. SHENGWEI provides high-density, modular ODF solutions for data centers and telecom hubs.
Modular & Scalable Design: Our ODF systems feature modular patch panels, splice trays, and cable management units, allowing flexible configuration and easy capacity expansion to meet growing network demands.
High-Density Fiber Management: Engineered to maximize rack space utilization, supporting ultra-high port counts with clear labeling and routing to minimize bend radius and ensure optimal signal integrity.
Robust Construction for Critical Environments: Built with heavy-gauge steel, equipped with proper grounding and cable strain relief, ensuring physical protection and reliable performance in data centers and carrier-grade facilities.
Custom OEM Configurations & Integration: We provide tailored ODF solutions—custom U heights, specific port mixes (LC, SC, MTP), branding, and integration with your existing cable management ecosystem for seamless deployment.

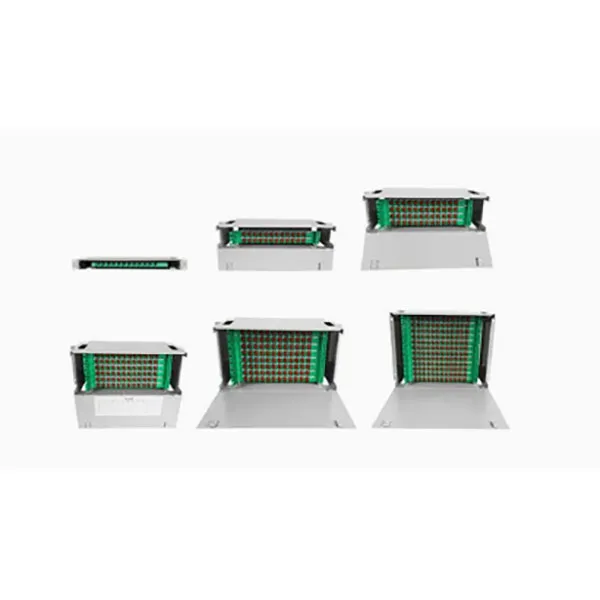

Optical Distribution Frame Series

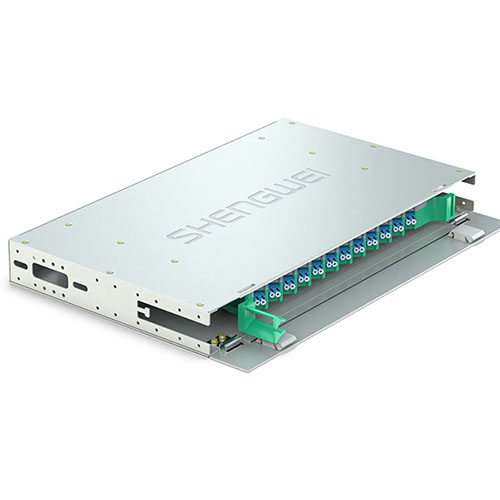

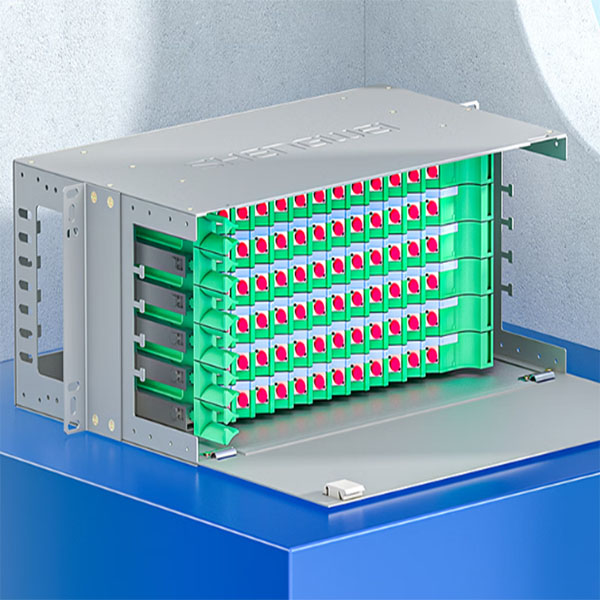

Rack-Mount ODF Series: Standard 19” rack-mountable frames, available in various U heights (1U to 48U), designed for high-density fiber termination and patching in data center main distribution areas (MDA).
Wall-Mount ODF Series: Compact and economical fiber termination units, ideal for space-constrained environments such as telecom closets, cell sites, or building entry points.
High-Capacity Splice & Distribution ODF: Integrated frames that combine large-capacity splicing with modular patch panels, perfect for central offices or FTTH distribution hubs requiring both functions.
Why Choose SHENGWEI Optical Distribution Frames for Your Critical Infrastructure?
A well-planned ODF is the backbone of a reliable fiber network. SHENGWEI’s Optical Distribution Frames are built to deliver unmatched organization, scalability, and durability for your most demanding environments. As a direct manufacturer, we combine rigorous quality control with deep engineering expertise to offer solutions that are both cost-effective and future-proof. Partner with us to streamline your fiber infrastructure. Contact our technical sales team today for a customized layout proposal or to request detailed specifications.
Optical Distribution Frame Applications

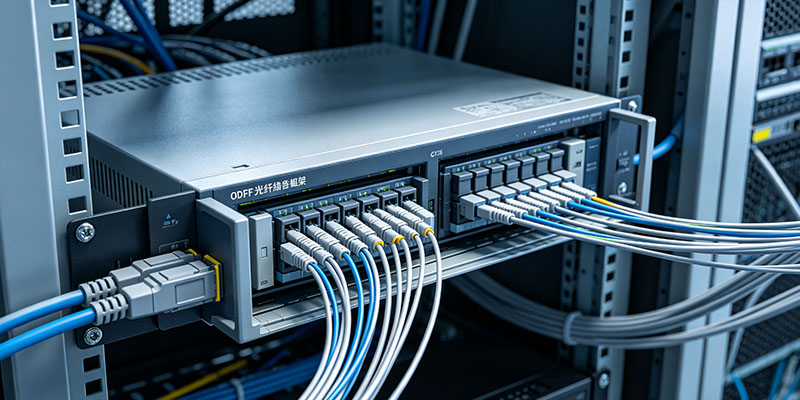

Centralized fiber patching and cross-connect point in the main distribution area (MDA) of data centers and large server rooms.
Used in outdoor cabinets or indoor hubs for distributing fiber connections to multiple end-users in Fiber-to-the-X networks.
Backbone fiber termination, splicing, and distribution frame for service providers and network operators.
Provides organized, secure, and auditable fiber interconnect management for sensitive and mission-critical infrastructure.
SHENGWEI ODF Advantages
Color-coded modules, tool-less access, and clear documentation reduce installation time and errors, lowering the total cost of ownership.
Products are designed to meet or exceed industry standards (e.g., TIA/EIA-568, GR-449), ensuring interoperability with major component brands.
Our designs prioritize high port density without compromising cable airflow or accessibility, following best practices for modern data centers.
From layout design and BOM preparation to after-sales technical guidance, we support integrators and contractors throughout the project lifecycle.
FAQs
A: A patch panel is typically a single unit for fiber connection. An Optical Distribution Frame (ODF) is a complete system—a frame that houses multiple patch panels, splice trays, and cable management components, offering a centralized, scalable, and more organized solution for high-density applications.
A: Yes, customization is a key service. We can adjust frame depth, provide mixed adapter panels (e.g., LC, SC, MTP in one frame), and incorporate specific cable routing paths or grounding requirements based on your project specifications.
A: Absolutely. Each SHENGWEI ODF ships complete with all necessary mounting brackets, hardware, and comprehensive installation guides. Detailed CAD drawings and rack elevation diagrams are also available upon request to assist with planning.
