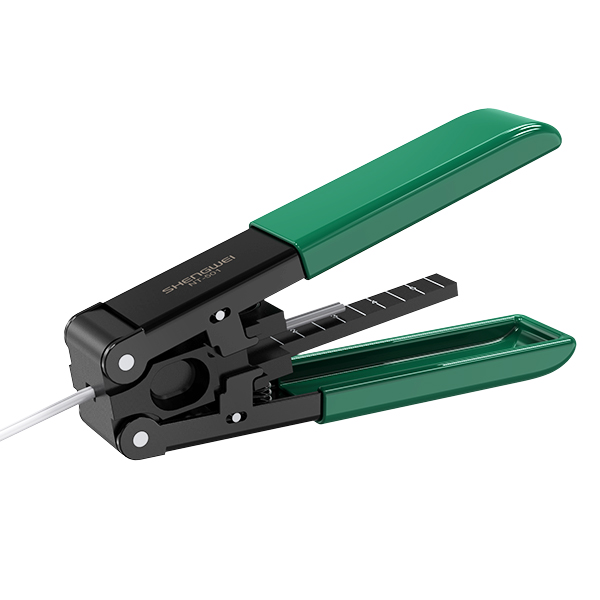

Precision FTTH Drop Cable Stripper — CR12 Hardened Blades for Flat Fiber Cables (3.1×2.0mm)
Strip flat FTTH drop cables cleanly and quickly with this precision fiber stripper. Hardened CR12 steel blades (HRC 60) and a rugged zinc alloy body deliver reliable performance for telecom contractors and fiber optic installers.

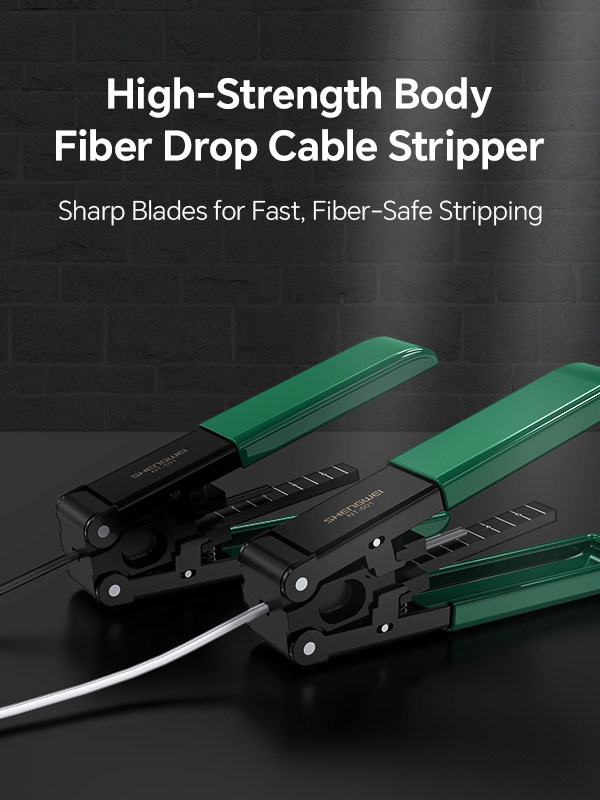

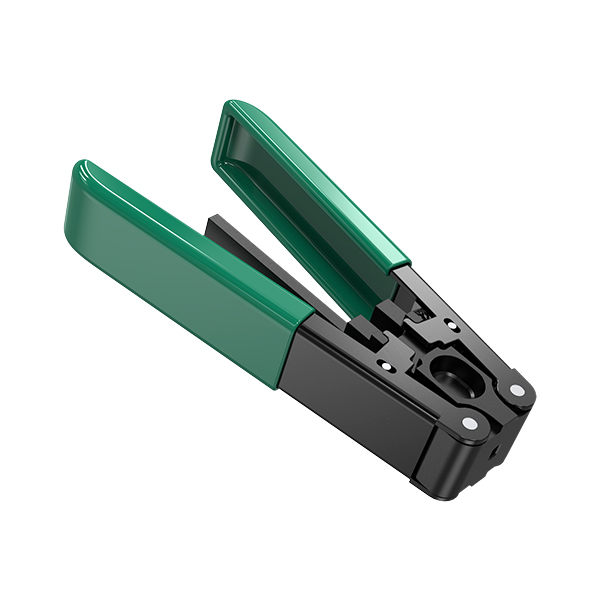

– CR12 Hardened Blades (HRC 60) — Strips outer sheath cleanly without damaging the 125µm fiber core
– One-Step FRP Cutting — Built-in notch severs strength members in a single action

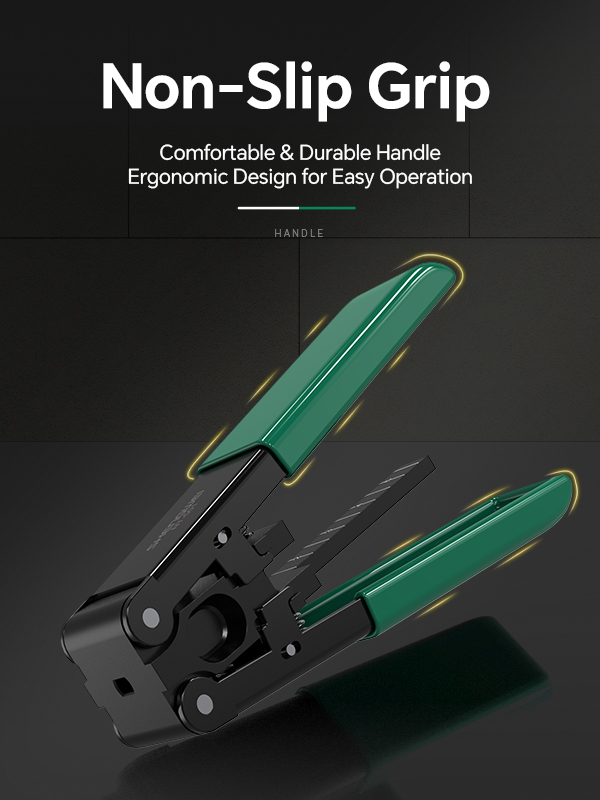

– Spring-Loaded Ergonomic Handles — Non-slip grip reduces fatigue during repetitive splicing
– Zinc Alloy Body — Drop-resistant, corrosion-proof, built for field use

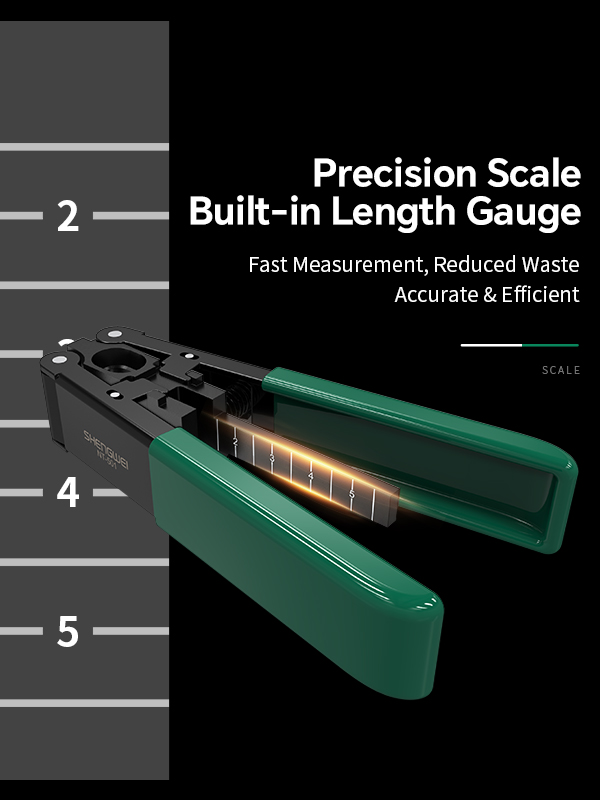

– Integrated Length Gauge — Adjustable markings ensure consistent strip lengths
Fiber Stripper Description
SHENGWEI Fiber Drop Cable Stripper is a specialized tool designed for fast, precise preparation of flat drop cables in FTTH deployments and fiber maintenance. Its CR12 steel blades (HRC 60) cleanly strip the outer jacket and cut through FRP strength members without nicking the delicate 125µm fiber. The ergonomic, spring-loaded handles and built-in length scale improve efficiency and reduce installer fatigue. We supply this essential tool to telecom contractors, fiber optic technicians, and network installers for reliable, high-quality field terminations.
Fiber Stripper Data Sheet
| Parameter | Specification |
| Model | NT-501 |
| Product Name | Fiber Drop Cable Stripper |
| Blade Material | CR12 Steel, Hardness HRC 60 |
| Body Material | Zinc Alloy |
| Dimensions | 30 x 110 x 20 mm |
| Applicable Cable | 3.1 x 2.0 mm Flat Drop Cable |
| Fiber Count | 1–2 cores |
| Fiber Diameter | 125 µm |
| Handle Design | Non-slip, Spring-loaded for auto-return |
| Weight | Lightweight (approx. 100g) |
Detail Display
More Details
Precision Stripper Key Features
The SHENGWEI fiber stripper is engineered for one-step preparation of flat drop cables. Its dual-function design includes a precision stripping zone for removing the outer sheath and a dedicated cutting notch for severing FRP strength members, all while protecting the fiber core. The tool features a built-in length gauge (adjustable) for consistent strip lengths, and the ergonomic handles with a spring return enable repetitive use with minimal effort. The high-hardness CR12 blades maintain sharpness over thousands of strips.
