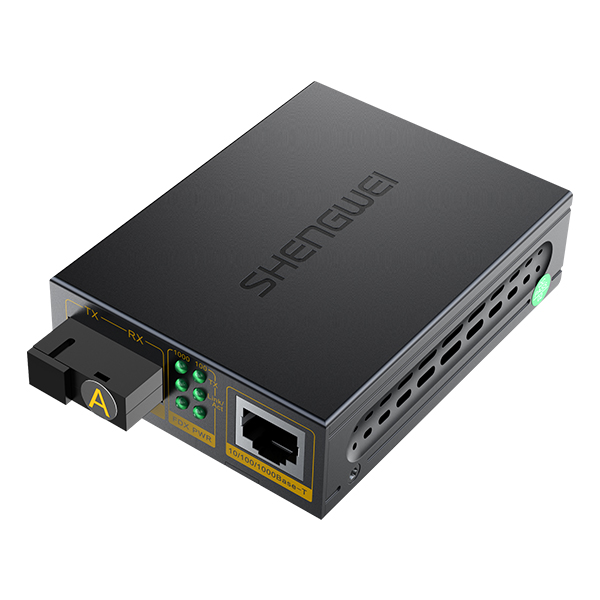

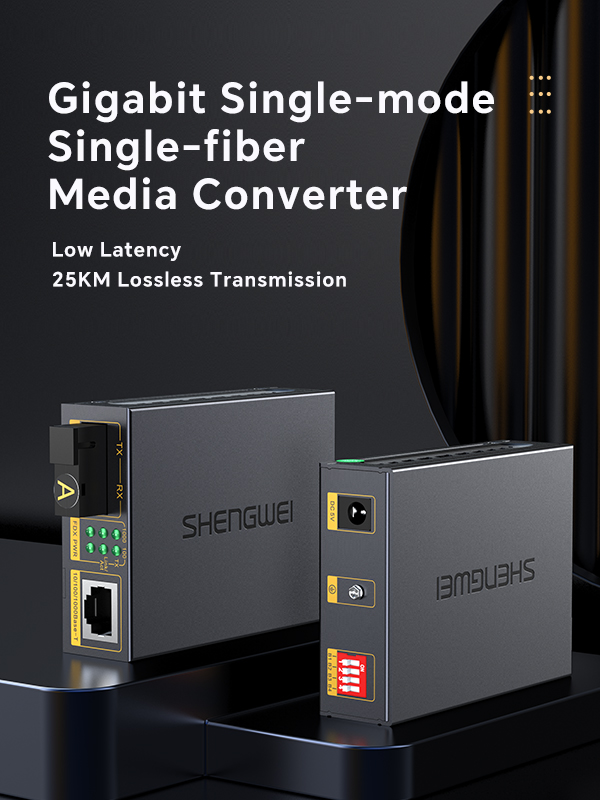

25KM Gigabit Single-Fiber Media Converter with Dual Lightning Protection
This industrial-grade media converter enables reliable 25km Gigabit Ethernet over single-mode fiber, featuring Marvell chipset, 4KV dual lightning protection, and watchdog auto-reboot for network installers.
1. Extended 25KM Transmission: Supports long-distance Gigabit Ethernet connectivity up to 25 kilometers over single-fiber single-mode (SMF), ideal for connecting remote facilities.
2. Industrial-Grade Protection: Incorporates dual 4KV lightning/surge protection on both power and Ethernet ports, with a watchdog circuit for automatic recovery from faults.

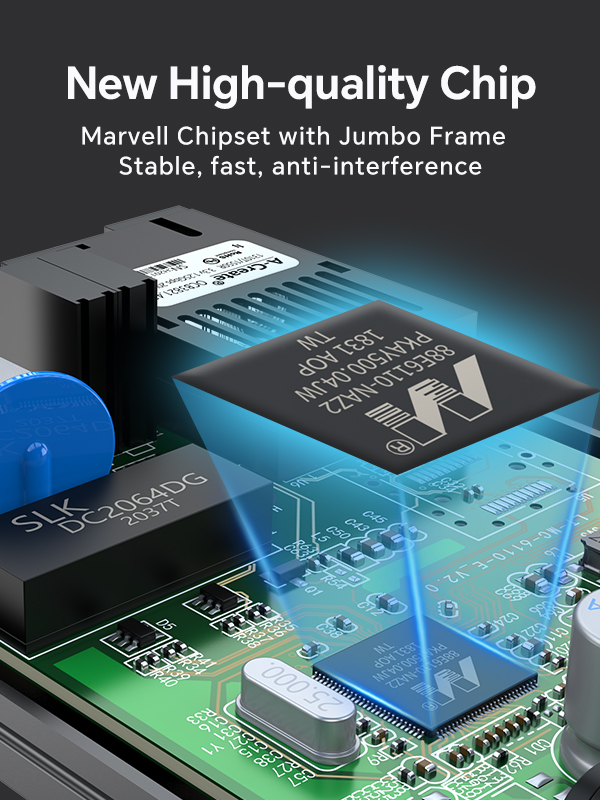

3. Advanced Chipset & Management: Built with Marvell chipset supporting jumbo frames and auto-negotiation, plus DIP switches for configuring LFP, storm control, and port speed.
4. Wide Environment Tolerance: Operates in extreme temperatures from -30°C to 70°C, making it suitable for outdoor cabinets and harsh industrial applications.
Media Converter Description
This Gigabit Single-Fiber Media Converter is engineered for robust, long-distance network extension. It converts 10/100/1000BASE-T Ethernet to an optical signal for transmission up to 25km over one strand of single-mode fiber. Key features include industrial 4KV dual lightning protection, a watchdog auto-reboot function, and versatile DIP switch configuration. It is an essential solution for connecting remote IP cameras, extending campus networks, and building reliable FTTx backbones in challenging environments.
Media Converter Data Sheet
| Parameter | Specification |
| Model | FC-211AB |
| Data Rate (Copper) | 10/100/1000Mbps Auto-Negotiation |
| Data Rate (Fiber) | 1000Mbps |

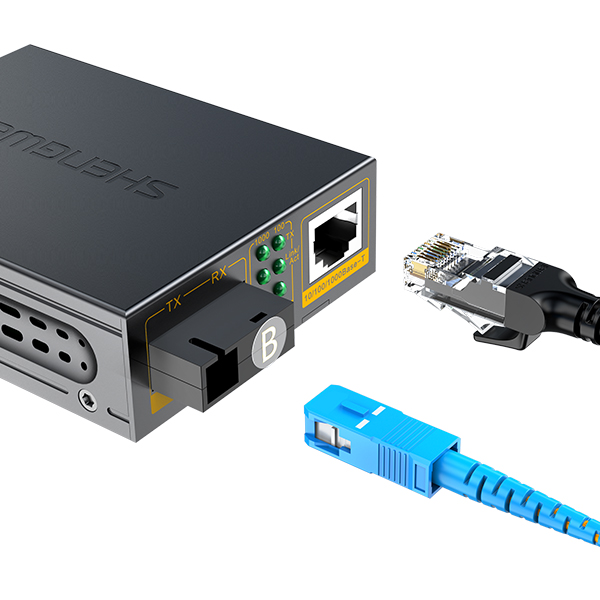

| Fiber Interface | SC (Single-Fiber Bi-Directional) |
| Fiber Type / Distance | Single-Mode / Up to 25 km |

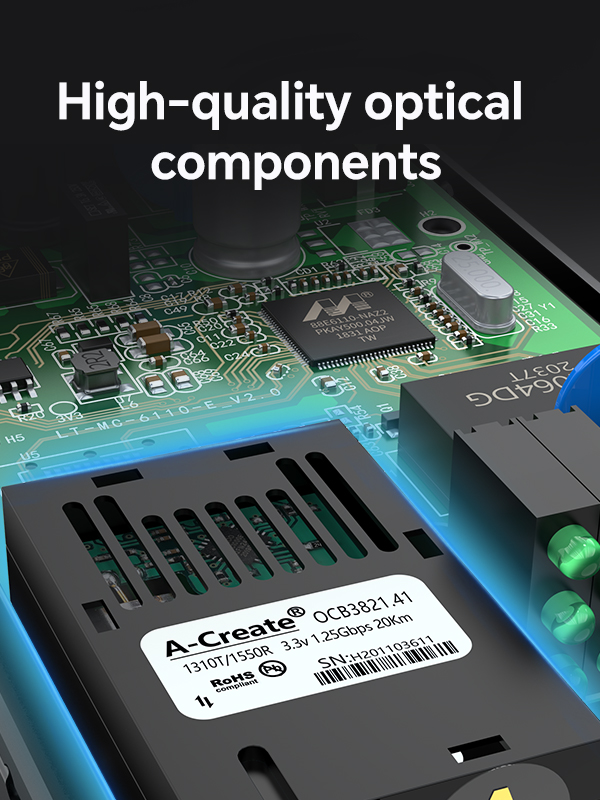

| Wavelength | TX: 1310nm, RX: 1550nm (or vice versa for pair) |
| Chipset | Marvell |
| Features | Jumbo Frame Support, Auto MDI/MDI-X, Full/Half Duplex Auto |

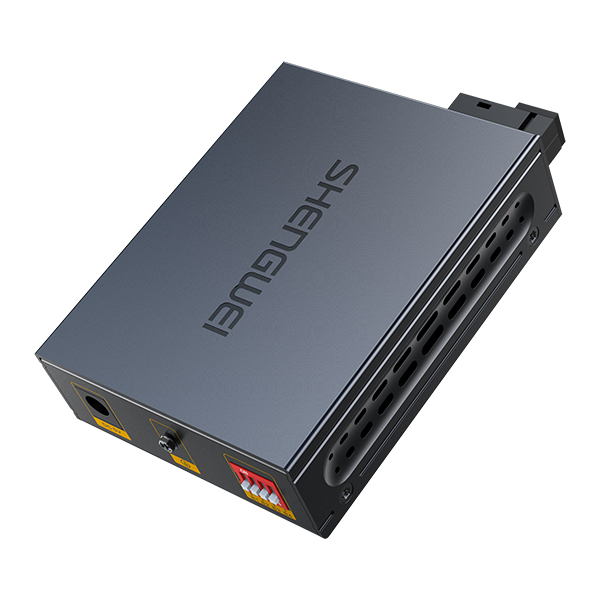

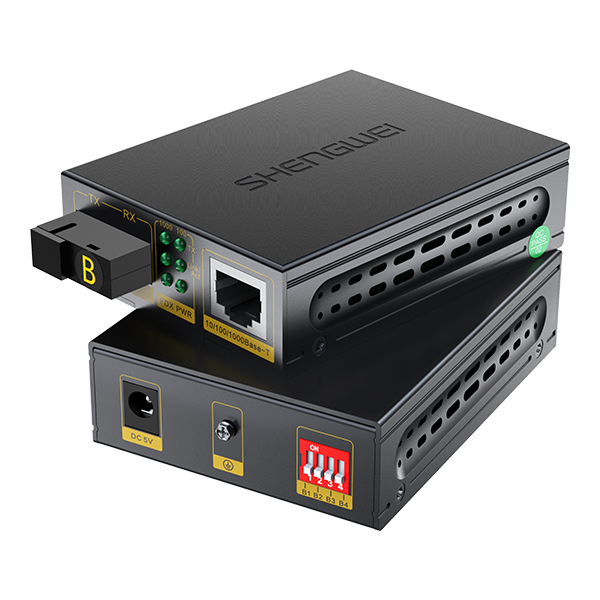

| DIP Switch Functions | Link Fault Pass-Through (LFP), Broadcast Storm Suppression, Force Fiber to 100M, Force Copper to 100M |
| Protection | Dual 4KV Lightning/Surge Protection (Power & Ethernet) |
| Watchdog | Yes (Auto-Reboot) |
| Power Supply | DC 5V (3C Certified) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% (Non-condensing) |

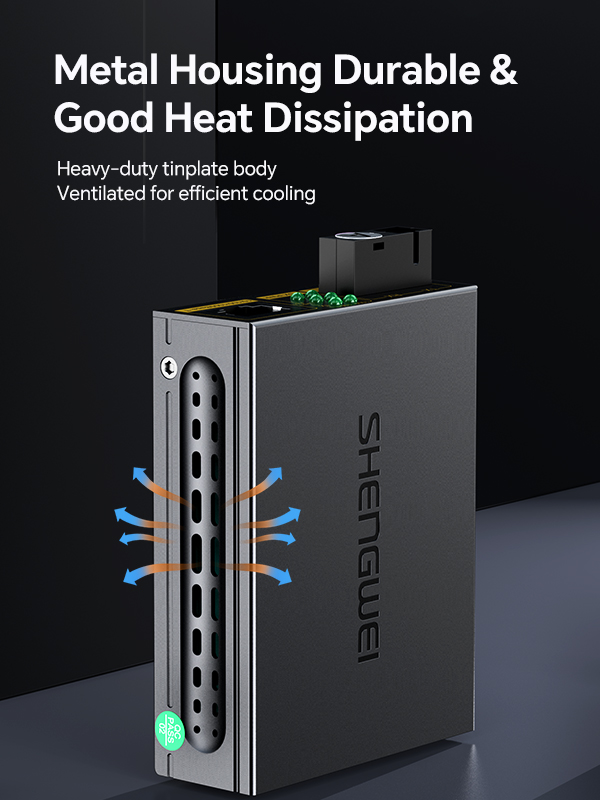

Detail Display
Fiber Media Converter Applications
1. Long-Distance Surveillance & Security: Connects remote IP cameras, access control systems, and perimeter security devices back to a central monitoring station over kilometers.
2. Campus/Industrial Network Backbone: Extends network links between separate buildings in universities, factories, or utility plants where electrical isolation and lightning protection are critical.
3. Telecom Access & FTTx Networks: Used in fiber-to-the-building (FTTB) or fiber-to-the-home (FTTH) deployments as an economical converter for last-mile connectivity.
