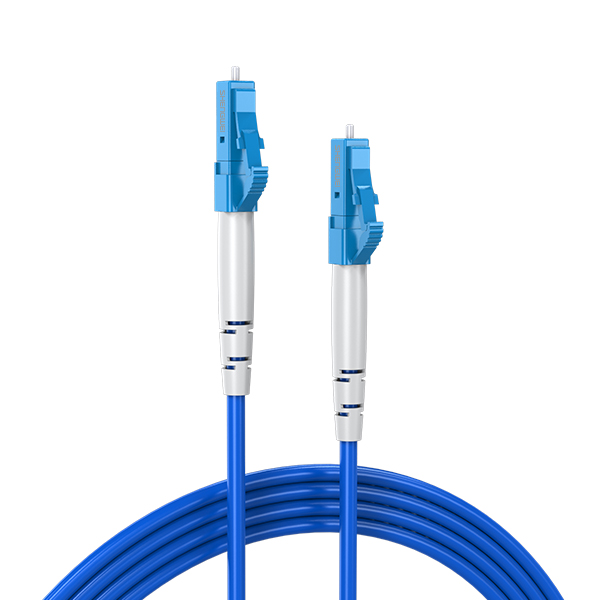

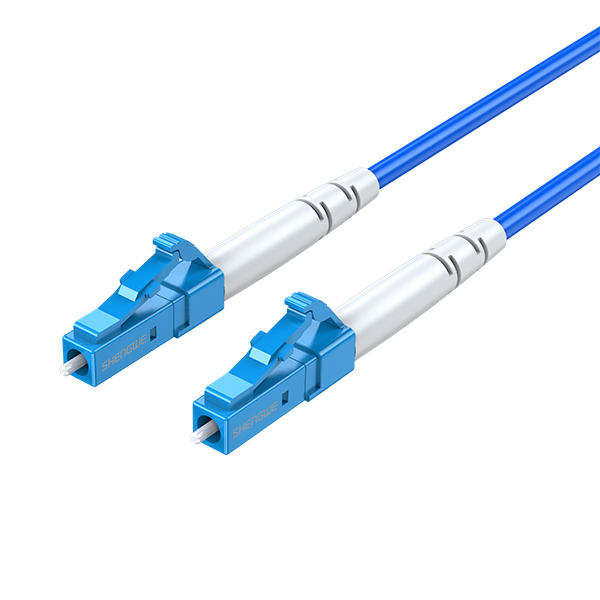

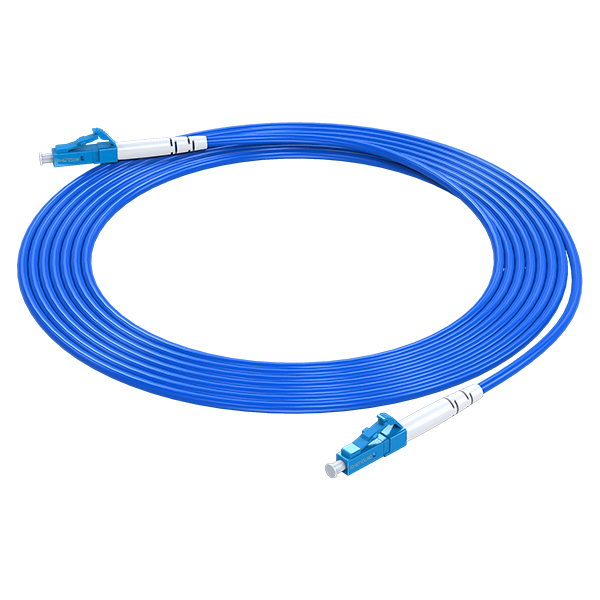

LC-LC Single-mode Armored Simplex Patch Cord
This LC-LC armored simplex patch cord protects fragile fiber cables in tough installations. Its stainless steel armor prevents damage from crushing or rodents.
• Stainless steel armor – Withstands crushing, impact, and rodent bites.
• LC simplex connectors – Saves space in high-density panels.
• Single-mode (9/125µm) – Ensures stable, long-distance signal transmission.
• Indoor & outdoor ready – Suitable for direct burial, duct, or aerial lashing.
• Factory-direct supply – Custom lengths and connector types available.
Armored Patch Cord Description

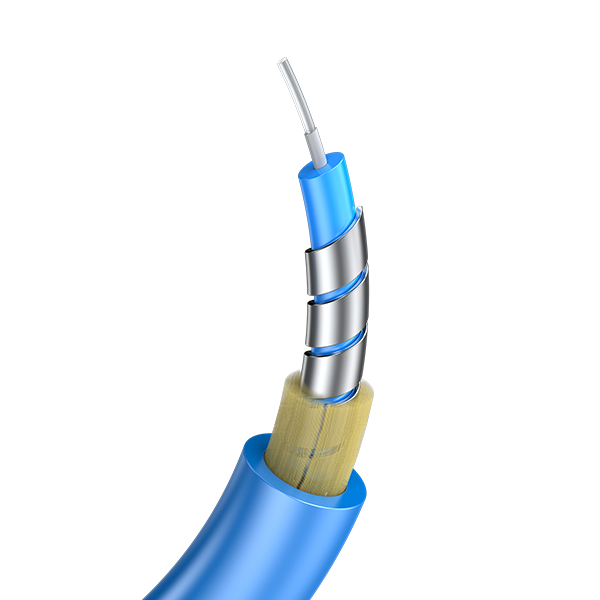

As a manufacturer of fiber optic cabling, we understand that standard patch cords can be damaged in industrial, outdoor, or high-traffic areas. Our LC-LC single-mode armored simplex patch cord solves this by adding a flexible stainless steel interlocking armor beneath the outer jacket.
This design provides crush resistance and rodent protection without sacrificing the low insertion loss and high bandwidth of single-mode fiber. It is an ideal replacement for fragile standard jumpers in telecom rooms, factory floors, and campus backbone links. We offer wholesale pricing and custom lengths.
Armored Patch Cord Data Sheet
| Item | Specifications |
| Model No | FLCK-0103 |
| Product Name | LC-LC Single-mode Armored Simplex Patch Cord |
| Fiber Type | Single-mode (SM), OS1/OS2 |
| Connector Type | LC-LC, UPC/APC Polishing (Optional) |
| Cable Structure | Simplex, Armored (Steel Wire/Aluminum Foil), PVC/LSZH Jacket |
| Operating Wavelength | 1310nm / 1550nm |
| Insertion Loss | ≤0.3dB (UPC); ≤0.2dB (APC) |
| Return Loss | ≥50dB (UPC); ≥60dB (APC) |
| Cable Length | 1m, 2m, 3m, 5m, 10m (Customizable) |
| Operating Temperature | -40℃ ~ +85℃ |
| Application | Data Centers, Telecom Networks, Industrial Control, Outdoor Wiring, Long-distance Transmission |
| Certification | RoHS, CE, FCC |
| Supply Type | Wholesale, Bulk, Customized Orders |
Detail Display
Applications for Crush-Resistant Fiber Patch Cords
• Industrial networks (EtherCAT/Profinet): Withstands vibration and accidental impacts on machinery.
• Outdoor Wi-Fi backhaul: Provides durability for connections between access points in parks or campuses.
• Shared tenant buildings: Runs through risers or common areas where rodents or construction mishaps are possible.
• Temporary event networks: Resists damage from foot traffic and cable traps at concerts or trade shows.
More Details
Why Choose Armored Patch Cord?
Standard fiber jumpers can be crushed or chewed through. This armored cord adds a stainless steel interlocking layer that resists pressure and rodent bites while keeping the same optical performance. No need for rigid conduit. Fewer network failures.
