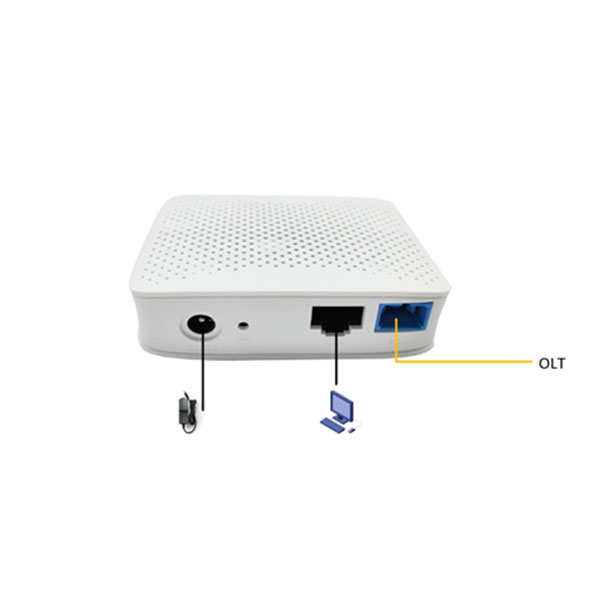

Dual Mode XPON ONU WXPN-1 1GE for FTTH
SHENGWEI WXPN-1 XPON ONT (1XPON+1GE) serves home/SMB users, meeting FTTH high-speed data needs as a reliable supplier.
Dual G/EPON Compatibility：1*G/EPON interface (SC/UPC/APC), complies with GPON/EPON standards, automatically accesses EPON/GPON networks.
1GE High-Speed Port：1*10/100/1000Mbps RJ45 interface, enabling stable high-speed data transmission for FTTH applications.
Dual Working Modes：Optional Bridge Mode and Routing Mode, flexible for home and small business network deployment.
Dying Gasp Protection：Supports Dying gasp function, providing real-time fault alerts for easy network maintenance.
SHENGWEI OEM/ODM Support：Tailored firmware, branding and packaging to meet global partners’ customization requirements.
XPON ONT Description
SHENGWEI, a professional manufacturer, supplies the WXPN-1 XPON ONT (dual mode 1XPON+1GE). It supports bridge/routing modes and Dying gasp, with a compact size (79.5mm75mm21mm) for easy installation. Ideal for home and SMB users, it meets FTTH high-speed data needs, offering bulk supply and customization for global distributors.
PON ONT Technical Data Sheet
| Attributes | Specifications |
| Product Model | WXPN-1 |
| Interface | 1 x XPON (SC/UPC/APC) + 1 x GE RJ45 (10/100/1000Mbps) |
| Compatibility | GPON (ITU-T G.984.1-4)、EPON (IEEE 802.3ah)， auto-access |
| Transmission Distance | 0 ~ 20 km |
| Transmission Rate | EPON: 1.25Gbps (Up) / 1.25Gbps (Down) |
| GPON: 1.25Gbps (Up) / 2.5Gbps (Down) | |
| Working Modes | Bridge Mode、Routing Mode |
| Key Functions | Dying gasp、IGMP v2/v3、VLAN tagging (1-4094) |
| Power Supply | 12V / 0.5A (AC 100~240V input) |
| Power Consumption | ≤ 5W |
| Dimensions (LWH) | 79.5 mm x 75 mm x 21 mm |
| Weight | 0.05 kg |
| Operating Environment | Temperature: -5°C ~ +45°C |
| Humidity: 5% ~ 95% (non-condensing) | |
| Certifications | RoHS |
Detail Display

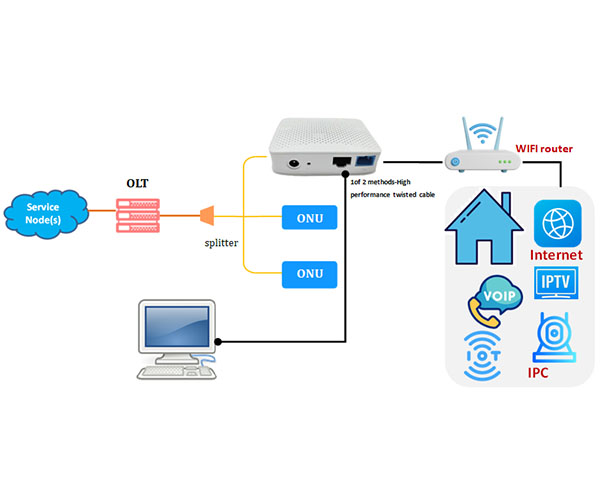

XPON ONT Applications
Widely used in FTTH broadband access for home users and small businesses. Suitable for ISP residential deployments, office networks, and rural fiber projects. It provides stable high-speed data transmission, supporting internet surfing, video streaming, and office work, ideal for global wholesale and distribution partners.
More Details
WXPN-1 LED Status Guide
Intuitive LED indicators: Green solid PWR = normal power; red LOS = optical link failure; green PON = successful registration; green flashing LAN = data transmission.
Dual-System Management Features
Supports OMCI, WEB UI and SSH CLI management. Dual-system backup ensures stability, with SN/LOID authentication for secure deployment.
Bulk Packaging Specifications
Inner carton (172x85x36mm) holds 1 unit; outer carton (390x370x200mm) contains 40 units, optimizing bulk order logistics.
