Compact 1U GPON OLT 4/8/16 Ports for FTTH Network
SHENGWEI’s 4/8/16 Port GPON OLT delivers high-density fiber access with carrier-grade reliability. As a leading manufacturer, we provide flexible OEM solutions and global technical support for ISPs and enterprises.
High Port Density in 1U Design: Maximizes rack space efficiency, supporting up to 16 GPON ports in a compact 1U chassis for easy deployment.
Carrier-Grade Reliability & Redundancy: Features modular dual power supply (AC/DC) and supports ERPS/LACP protocols to ensure 24/7 uninterrupted network operation.
Advanced Layer 3 Routing & Security: Supports OSPF/BGP/IPv6 routing and comprehensive ACL/QoS, DDoS protection for secure, scalable enterprise and carrier networks.
Full GPON Standard Compliance: Complies with ITU-T G.984/G.988, supports 60km transmission, 1:128 splitting, and interoperable with any standard ONT.
Centralized & Flexible Management: Offers WEB/CLI/SNMPv3 multi-management, batch ONU upgrade, and Type-C console port for efficient maintenance.
GPON OLT Description
SHENGWEI, as a professional manufacturer and supplier, provides this series of high-performance Indoor GPON OLTs with 4, 8, or 16 ports. Designed for FTTH (Fiber to the Home) deployments, enterprise campus networks, and government park access, it solves the critical needs for scalable bandwidth, secure multi-service transmission (data, VoIP, video), and simplified network management. This 1U rack-mount GPON optical line terminal boasts a 104Gbps switching capacity and supports advanced Layer 3 routing protocols like OSPF and BGP, making it an ideal, cost-effective solution for ISPs, system integrators, and network operators seeking reliable fiber access equipment. We offer wholesale and OEM services for global distributors.
GPON OLT Technical Data Sheet
| Attribute | WGP58-04 (4 Port) | WGP58-08 (8 Port) | WGP58-16 (16 Port) |
| GPON Ports | 4 x GPON (SFP) | 8 x GPON (SFP) | 16 x GPON (SFP) |
| Uplink Ports | 4 x 10/100/1000M Base-T + | Same as WGP58-04 | 8 x 10/100/1000M Base-T + |
| 4 x 1G/10G SFP+ Combo | 4 x 1G/10G SFP+ Combo | ||
| Switching Capacity | 103 Gbps | 118 Gbps | 156 Gbps |
| Forwarding Rate | 76.632 Mpps | 87.792 Mpps | 116.064 Mpps |
| PON Standard | ITU-T G.984/G.988, 60km reach, 1:128 split ratio | ||
| Layer 3 Routing | Static, RIP, OSPF, BGP, ISIS, IPv6 | ||
| Power Supply | Modular Dual PSU (AC 100-240V / DC -48V), Redundant | ||
| Power Consumption | ≤ 55W | ≤ 65W | ≤ 65W |
| Dimensions (WxDxH) | 440mm x 260mm x 44mm (1U) | ||
| Operating Temperature | -10°C to 55°C | ||
Detail Display

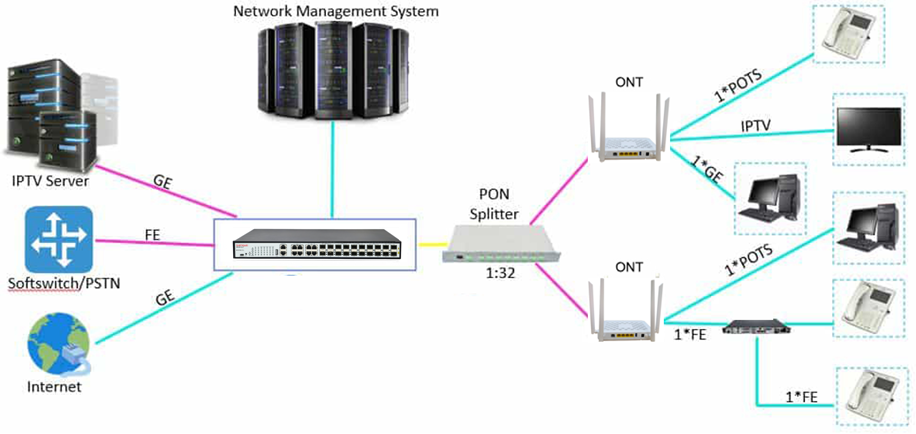

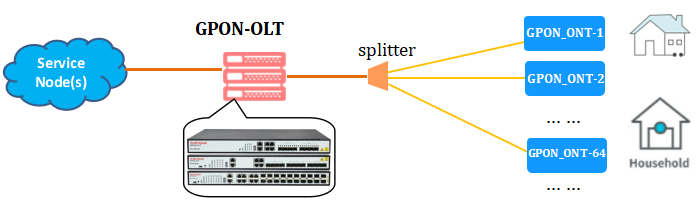

GPON OLT Applications
This versatile Indoor GPON OLT is engineered for a wide spectrum of high-bandwidth scenarios:
1) Telecom FTTH Mass Deployment: Serves as the central office (CO) equipment for operators delivering gigabit broadband to residential and business subscribers.
2) Enterprise & Campus Network Backbone: Provides a secure, high-speed fiber optic backbone for corporate offices, universities, hospitals, and hotels, supporting converged data, voice, and IPTV/Video services.
3) Government & Smart City Projects: Builds reliable, scalable network infrastructure for smart parks, industrial zones, and secure VPN services.
4) MDU (Multiple Dwelling Unit) & Hospitality Access: Enables efficient and manageable multi-tenant internet and IPTV service distribution. Its carrier-class features make it the optimal fiber access equipment choice for network builders, service providers, and system integrators globally.
More Details

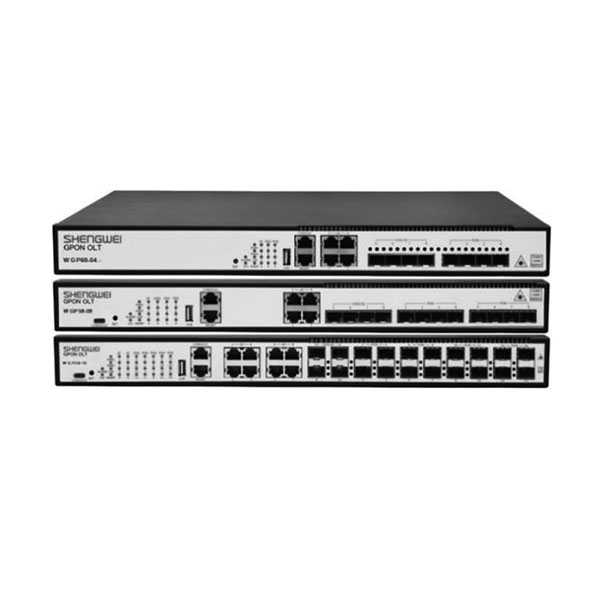

Durable 1U Hardware Design
Built with a robust all-metal 1U chassis for optimal heat dissipation. Features clear front-panel LEDs for quick status checks and modular, hot-swappable dual power supplies (on 8/16 port models) for maximum uptime, reducing your total cost of ownership.
Advanced Software & Management
Runs a proven OS supporting Zero-Touch Provisioning (ZTP) for fast deployment and standard OMCI for third-party ONT compatibility. Includes enterprise-grade security with DDoS mitigation and ARP spoofing protection.
Your Trusted Partner
With over 19 years in optical communications, SHENGWEI offers more than products. We provide comprehensive pre- and post-sales technical support, along with flexible OEM services like custom labeling and firmware branding for your bulk orders.
