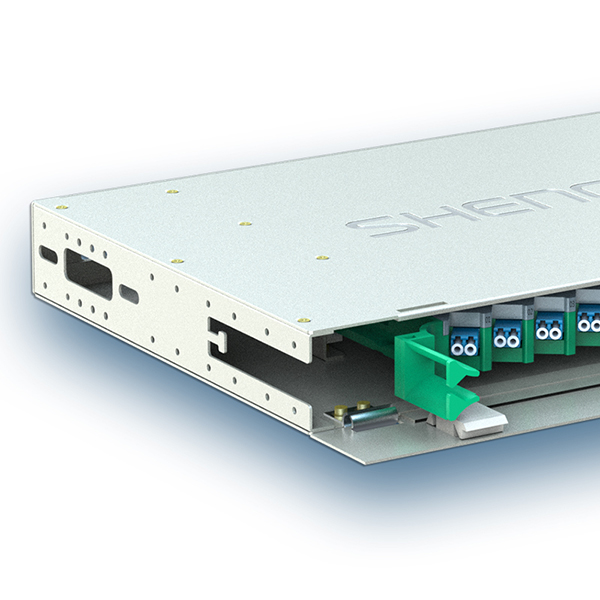

24-Core 1U Rack Mount ODF Patch Panel
SHENGWEI factory-direct 24-core ODF patch panel in 1U rack space. Pre-configured for data centers and telecom rooms with low insertion loss.
• 24 cores in 1U – high-density fiber termination
• Fully pre-loaded – pigtails and adapters installed

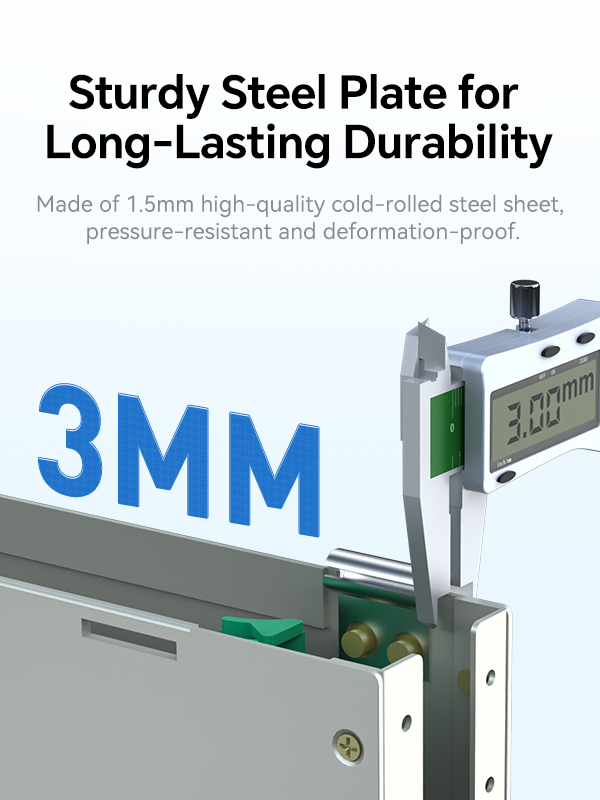

• Cold-rolled steel body – anti-corrosion and durable
• Universal compatibility – LC/SC/FC/ST connectors optional
• Easy maintenance – clear port labeling and front access
24-Core ODF Panel Description
As a manufacturer of fiber management solutions, we supply this 24-core ODF patch panel for high-density environments. The 1U rack-mount design saves space while providing organized fiber termination, splicing, and distribution. Pre-installed pigtails and adapters reduce on-site labor. Suitable for data center MDA, telecom closets, and enterprise server rooms. Wholesale and custom connector options available.
24-Core ODF Panel Data Sheet
| Item | Specification |
| Model No | ODF-1024L-S |
| Product Name | 24-core ODF Patch Panel |
| Structure Type | 1U Standard Rack-mount |
| Material | Cold-Rolled Steel, Anti-Corrosion |
| Fiber Capacity | 24 Cores (SM/MM optional) |
| Connector Type | LC/SC/FC/ST (customizable) |
| Insertion Loss | ≤0.3dB (UPC); ≤0.2dB (APC) |
| Return Loss | ≥50dB (UPC); ≥60dB (APC) |

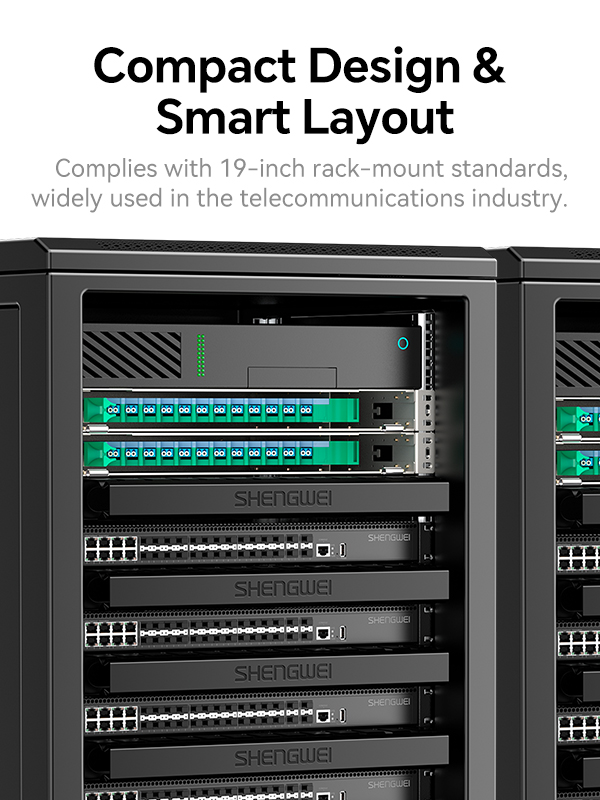

| Rack Compatibility | 19-inch Standard Rack |
| Operating Temperature | -10°C to +60°C |
| Certification | RoHS, CE, FCC |
| Supply Type | Wholesale, Bulk, Custom |
Detail Display
Applications
Data center main distribution areas – organizing backbone fiber connections. Telecom equipment rooms – terminating incoming service provider cables. Enterprise network closets – managing campus building fiber runs. 5G base station shelters – compact termination for fronthaul links.
More Details
Why Choose SHENGWEI Factory-Direct ODF Panel?
SHENGWEI pre-installs all pigtails and adapters so you spend less time on site. The cold-rolled steel body resists corrosion in server room environments. Custom connector options (LC, SC, FC, or ST) fit the same panel footprint.
