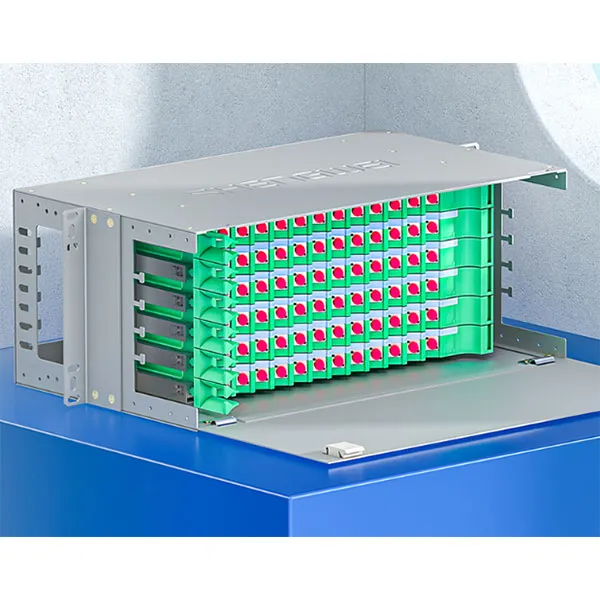

72-Port 1U Rack Mount ODF Panel
72-port ODF panel enables high-density fiber termination in 19-inch racks. Factory-direct with pre-installed pigtails and adapters.
• 72 ports in 1U rack space – maximizes data center density
• Fully pre-assembled – pigtails and adapters installed, ready to use
• Three-in-one integration – splicing, termination, and distribution
• Carrier-grade steel construction – cold-rolled steel for durability
• Wide temperature range -40°C to +60°C – reliable in harsh environments
72-Port ODF Panel Description
As a manufacturer of fiber management solutions, we designed this 72-port ODF panel to solve one problem: too many cables in too little space. It combines splicing, termination, and distribution into a single 1U rack-mountable unit. Pre-loaded with pigtails and SC adapters, it cuts installation time significantly. Suitable for telecom central offices, data center MDAs, and FTTH hubs. Wholesale and custom configurations available.
72-Port ODF Panel Technical Data
| Item | Specification |
| Model No | ODF-1072S-B |
| Material | Cold-rolled steel sheet |
| Fiber Capacity | 72 cores (SC) |
| Fiber Mode | Single-mode |
| Insertion Loss | ≤ 0.01 dB |
| Fiber Bend Radius | ≥ 37.5 mm |
| Cable Length per Port | ≥ 1.6 m |
| Lateral Crush Resistance | ≥ 2000 N/10cm |
| Impact Resistance | ≥ 20 N·m |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | ≤95% at +40°C |
| Form Factor | 19-inch rack-mountable |

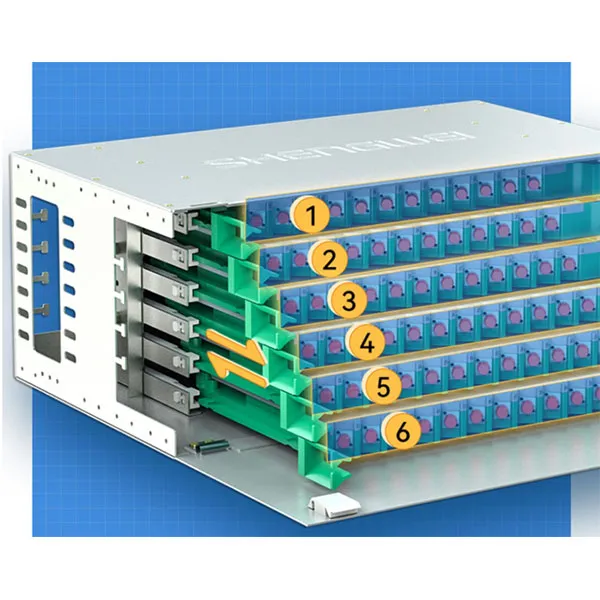

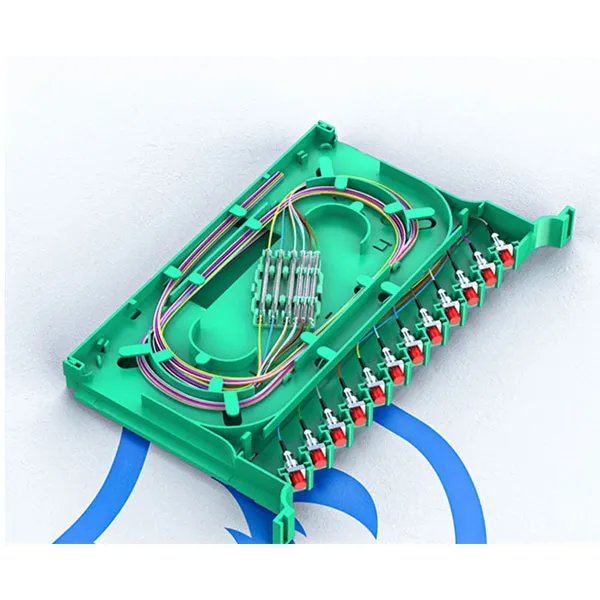

Detail Display
72-Port ODF Panel Applications
Telecom central offices – terminating feeder cables from outside plant. Data center MDA/IDA – organizing backbone and SAN connections. FTTH distribution hubs – serving MDUs and residential neighborhoods. Enterprise server rooms – keeping fiber cross-connects neat and traceable.
More Details
Built for Real Network Conditions
Standard patch panels fail when temperatures drop or cables get pulled. This ODF panel is rated -40°C to +60°C with 2000N crush resistance. The hinged front panel allows repeated access without tools.
