Not every fiber patch cord needs armor. But in certain installations, a standard jumper will fail within months — and the cost of replacing it, including downtime, is far higher than buying the right cable from the start.
This article breaks down the structural differences between armored and standard fiber patch cords, the environments where armor is genuinely necessary, and the specifications that matter when sourcing in volume.
How Armored Fiber Patch Cords Are Built
A standard fiber patch cord consists of a single-mode or multimode fiber strand, a buffer layer, and a PVC or LSZH outer jacket. It is designed for protected environments — patch panels inside climate-controlled equipment rooms, short runs inside cabinets, or temporary test connections.

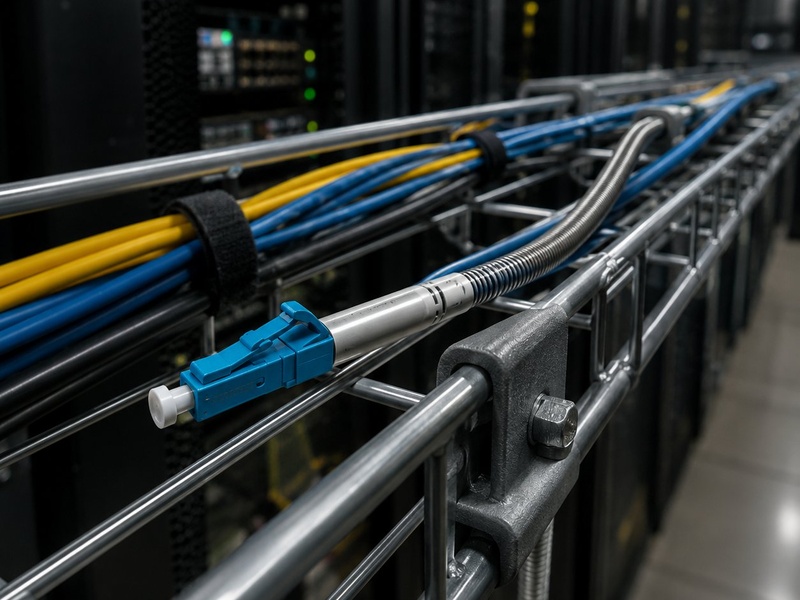

An armored fiber patch cord adds a stainless steel interlocking layer between the buffer and the outer jacket. This steel armor is flexible enough to bend and route through conduit, but rigid enough to resist compression loads and rodent bite-through. In some constructions, an aluminum foil layer is added beneath the armor for additional EMI shielding.
The connector type — LC, SC, ST, FC, or MTP — remains identical to standard patch cords. The armor affects only the cable body, not the ferrule or polishing standard.
Why Standard Patch Cords Fail in Harsh Environments
Fiber is surprisingly fragile. The glass strand itself has a minimum bend radius of around 30mm for standard single-mode fiber, and any kinking, crushing, or compression beyond that threshold causes microbending losses — gradual signal degradation that does not always trigger an immediate alarm but progressively degrades link performance.
In industrial settings, cables routed across cable trays can be pinched by equipment covers. In outdoor installations, UV exposure and moisture ingress eventually break down standard PVC jackets. In shared infrastructure — risers in commercial buildings, underground conduits — rodent damage is a documented and recurring failure mode across Africa, Southeast Asia, and Latin America, where FTTH networks are expanding rapidly into less-controlled environments.
Armored patch cords address each of these failure modes. The steel layer eliminates crush vulnerability, protects against bite-through, and adds tensile strength for aerial or direct-burial routing. In practice, armored jumpers last three to five times longer than standard cables in exposed installations, which more than justifies the cost premium of roughly 20–40% per unit.
Single-Mode vs Multimode in Armored Patch Cords
Most armored patch cord applications involve single-mode fiber (9/125µm, OS1 or OS2). The reasoning is straightforward: armored cables are deployed where the environment is harsh, and harsh environments are typically found in the backbone — longer runs between buildings, outdoor campus links, telecom rooms connecting to outside plant fiber. Single-mode fiber handles these distances without concern.
Multimode armored patch cords exist but are less common. They appear in industrial automation environments where short-run multimode is already the plant standard, and where the application requires the physical protection of armor rather than a change in fiber type.
When specifying, the key parameters for single-mode armored patch cords are:
| Parameter | Standard Value | Notes |
|---|---|---|
| Fiber Type | OS1 / OS2 (9/125µm) | OS2 for low-loss long-distance runs |
| Operating Wavelength | 1310nm / 1550nm | Covers GPON and CWDM applications |
| Insertion Loss (UPC) | ≤0.3dB | Verify per-connector, not total link |
| Insertion Loss (APC) | ≤0.2dB | APC preferred for PON networks |
| Return Loss (UPC) | ≥50dB | |
| Return Loss (APC) | ≥60dB | |
| Operating Temperature | -40°C to +85°C | Critical for outdoor deployments |
| Armor Material | Stainless steel interlocking | Confirm, not just aluminum wrap |
| Jacket Material | PVC or LSZH | LSZH required for indoor riser/plenum |
APC vs UPC: The Connector Decision
For passive optical networks — GPON, EPON, XGS-PON — APC (Angled Physical Contact) connectors are the correct choice. The angled ferrule reduces back-reflection to ≥60dB return loss, which is necessary for the bidirectional wavelength architecture of PON systems. Using UPC connectors in a PON network degrades upstream performance and can cause instability in the OLT receiver.
For point-to-point Ethernet or SFP transceiver connections in data centers or enterprise networks, UPC is standard and acceptable.
When ordering armored patch cords for FTTH last-mile or backbone applications, always specify APC. The color code is green for APC ferrules; blue for UPC.
Where Armored Patch Cords Are Actually Deployed
Industrial automation and factory floor networks are the most common application. EtherCAT and Profinet networks in manufacturing facilities use fiber to avoid EMI from variable frequency drives and servo motors. Cable runs cross machine frames, go under press beds, and are occasionally driven over by forklifts. Standard patch cords simply do not survive these conditions.
Outdoor Wi-Fi backhaul is a growing application. Campus networks, smart city deployments, and enterprise outdoor wireless use fiber jumpers between rooftop access points and IDF closets. The cable runs through conduit, but rodent damage in conduit is common in tropical climates, and UV degradation affects standard jackets within two to three years.
Telecom outside plant connections — the patch cord connecting inside plant equipment to outdoor splice closures or underground fiber — require armored cable rated for direct burial or duct installation. This is especially relevant for ISPs deploying GPON in urban areas with mixed infrastructure conditions.
Shared tenant buildings and multi-dwelling units use armored patch cords in riser shafts and common areas where the cable is not continuously monitored and may be exposed to construction, cleaning, or pest activity over the building lifecycle.
Procurement Considerations for Volume Buyers
For buyers sourcing in bulk — ISPs, EPC contractors, and system integrators — there are several practical points worth confirming with any supplier before placing an order.
Custom length availability matters. Standard retail lengths of 1m, 2m, 3m, and 5m are not always suitable for specific installation geometries. Factory-direct suppliers can produce patch cords to custom lengths, typically in increments of 0.5m or 1m, at the same per-unit price when ordered in volume.
Certification documentation should include CE, FCC, and RoHS compliance. For government or telecom operator projects, test reports confirming insertion loss and return loss per IEC 61300-3-4 are often required at bid stage.
Jacket material selection — PVC vs LSZH — affects project compliance. Low-smoke zero-halogen jackets are required in most indoor commercial and public building codes in Europe, the Middle East, and increasingly in Southeast Asia. Confirm this with the project electrical or building specification before ordering.
Connector polish specification should be documented on the shipment label. APC and UPC look similar and use the same LC form factor; the only reliable confirmation is the ferrule color (green = APC) or a supplied OTDR or insertion loss trace.
A Note on Testing
Every armored patch cord leaving a reputable factory is 100% tested for insertion loss and return loss before shipment. When receiving a bulk order, spot-check with an optical power meter and light source, or an OTDR if available. An insertion loss reading above 0.5dB on any individual connector indicates a defective unit and should be replaced under the supplier’s warranty terms.
Armored cables are not immune to installation damage. Tying the armor too tightly with cable ties at the minimum bend radius, pulling the cable from the connector body instead of the jacket, or exceeding the rated tensile strength during installation will cause the same microbending failures that armor is designed to prevent. The protection is in the cable structure, not in the connector — routing and installation practice still matters.
Armored fiber patch cords serve a specific engineering purpose. In protected indoor environments, they are unnecessary. In industrial, outdoor, or shared-infrastructure applications, they are frequently the only cable type that provides a serviceable link life. Specifying them correctly — single-mode OS2, APC for PON networks, LSZH jacket for indoor risers, stainless steel interlocking armor — ensures that the cable performs for the lifecycle of the installation.
