As a trusted exporter, we offer the WGP58-02 Dual-Port GPON OLT, adhering to ITU-T G.984/G.988 standards. With 51.5Gbps capacity, 1:128 splitting ratio, and multi-uplink ports, it meets FTTx deployment needs of telecom carriers and ISPs. The 1U space-saving design (270×180×44mm) and dual-power redundancy ensure reliable operation, providing cost-effective bulk solutions for network distributors.

GPON OLT Technical Sheet

pecification Category	Details
Basic Information	Model: WGP58-02; Product Name: 2-Port GPON OLT

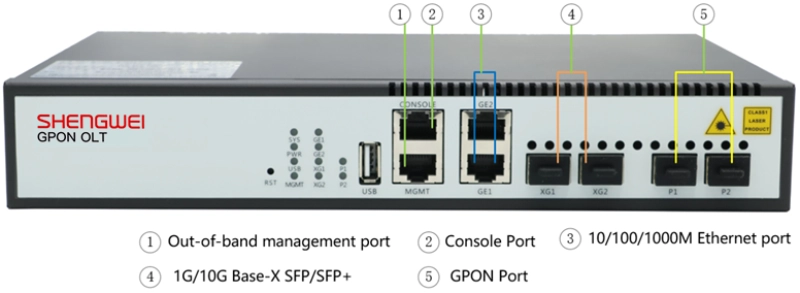

Interface Configuration	– 2×GPON ports (SC/PC, single-mode, 1490nm/1310nm)
	– 2×10/100/1000M Base-T uplink ports
	– 2×1000M Base-X SFP/2×10GE SFP+ uplink ports
	– 1×Console Port + 1×Management Port + 1×USB Port
Core Performance	– Exchange Capacity: 51.5Gbps
	– Packet Forwarding Rate: 59.7Mpps
	– Max Splitting Ratio: 1:128
	– Transmission Distance: Physical 20KM, Logical 60KM
Hardware Parameters	– Memory: 512MB
	– Storage: 32MB
	– MAC Address: 16K
	– Packet Buffer: 12Mbit
	– Weight: ≤2kg
	– Power Consumption: ≤30W
	– Dimensions (W×D×H): 270mm×180mm×44mm
	– Fan: 2×Fixed Fans
Power Supply	– AC: 100～240V, 47/63Hz
	– DC: 12V/2.5A

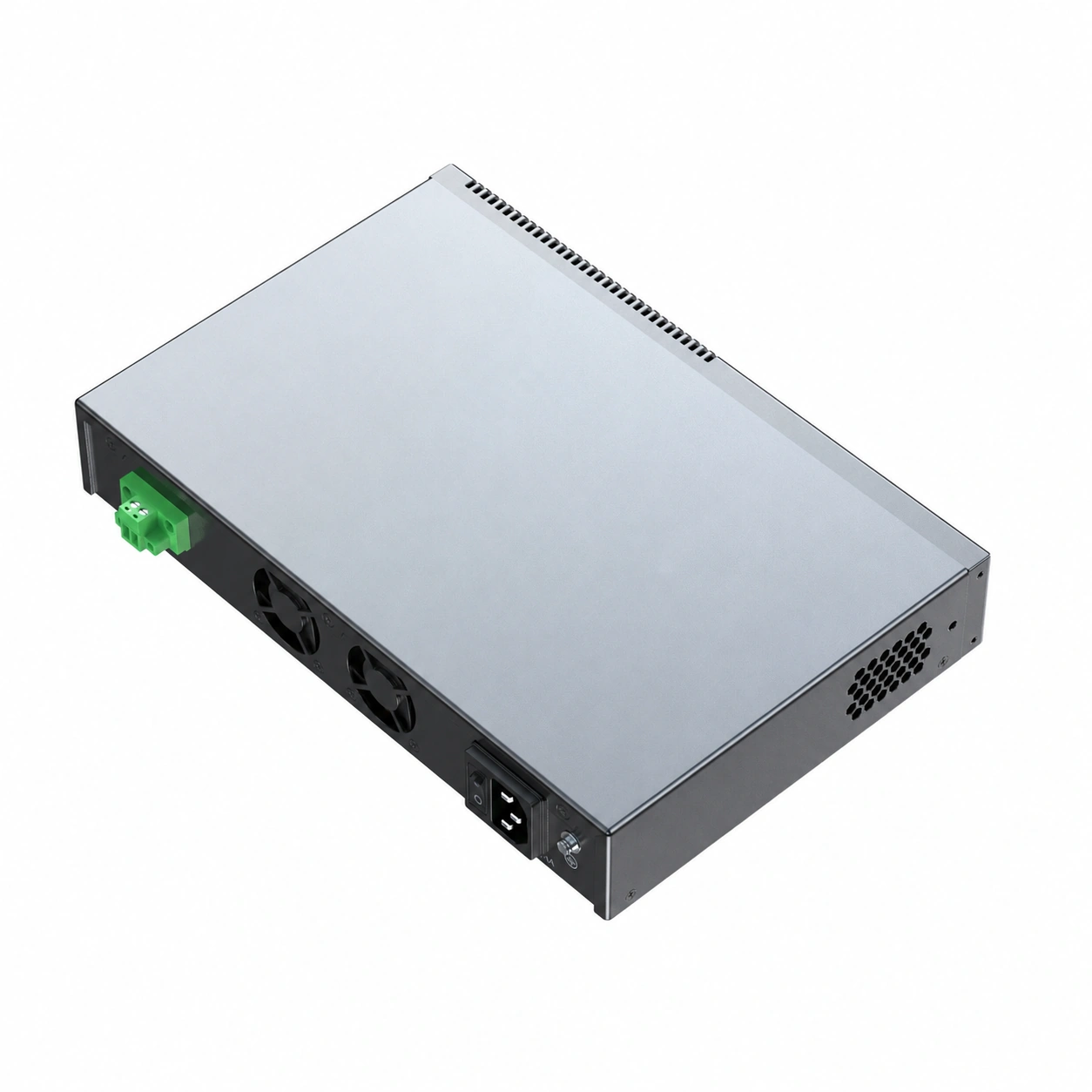

	– Optional Dual Power Backup (AC+DC/DC+DC)
Environmental Adaptability	– Working Temperature: -10℃～55℃
	– Storage Temperature: -40℃～70℃
	– Operating Humidity: 10%～95% (non-condensing)
	– Storage Humidity: 10%～95% (non-condensing)
Compliance & Certification	ITU-T G.984/G.988 Standards
Compliance & Certification	China RoHS, EEE
Key Software Features	– Supports 4K VLAN, STP/RSTP/MSTP, RIP/OSPF
	– ACL, QoS (SP/WRR/SP+WRR scheduling)
	– Multi-vendor ONU compatibility, batch ONT upgrade
	– Management: CLI/Telnet/WEB/SNMP V1/V2/V3/SSH2.0

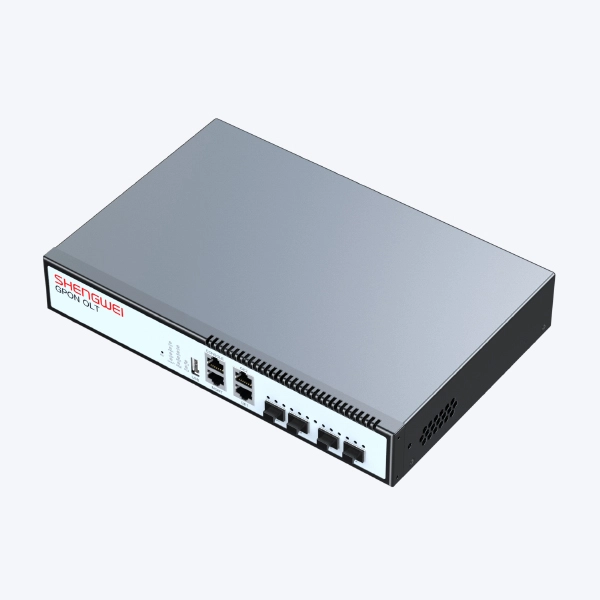

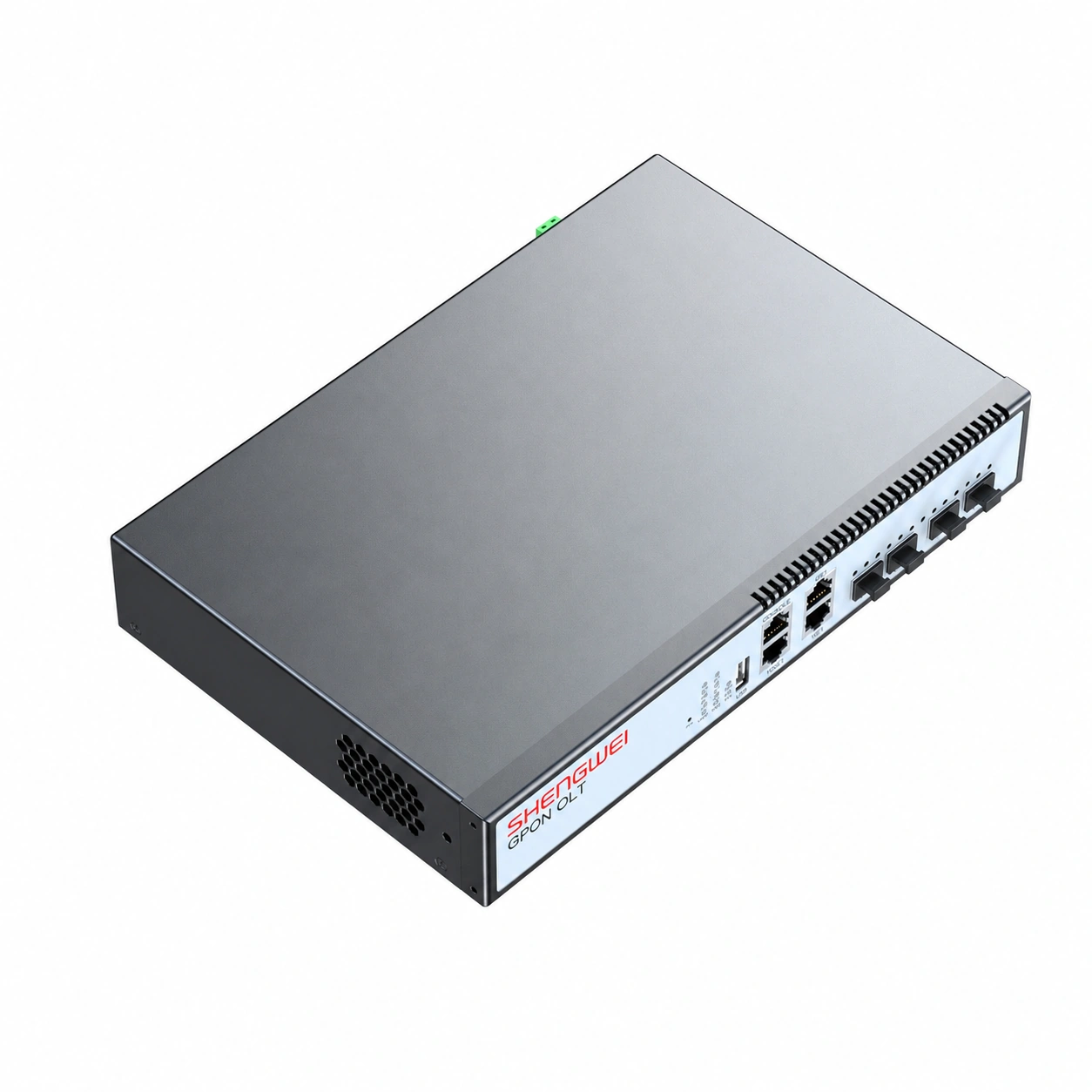

1U Compact 2-Port GPON OLT – High-Speed for Modern Networks

Detail Display

GPON OLT Applications

1. FTTH access networks for telecom carriers: 1:128 splitting ratio meets dense user broadband deployment needs;
2. Government/enterprise/campus networks: 1U compact size saves equipment room space, dual power backup ensures uninterrupted critical services;
3. Broadband services for small and medium ISPs: Multi-uplink ports (GE/SFP/10GE SFP+) flexibly adapt to different bandwidth plans, reducing networking costs;
4. Smart community/campus networking: Supports mixed networking of multi-brand ONUs, adapting to IoT device access such as access control and monitoring;
5. Remote area communication coverage: 20KM physical transmission distance + wide operating temperature range (-10℃~55℃) for complex environment deployment.
