XFC811AB 3KM Single-Mode Fiber Media Converter
10/100/1000M auto-negotiation fiber media converter with 3km reach, ideal for extending Ethernet networks over single-mode fiber. Reliable for network installers.
- Long-Distance & High-Speed Conversion: Supports up to 3km transmission over single-mode single-fiber (1310/1550nm) with full Gigabit speed and auto-negotiation on the copper port.
- Industrial-Grade Reliability: Features a robust metal housing, wide operating temperature (-20°C to +65°C), and CPU-based real-time monitoring for stable operation in demanding environments.
- Plug-and-Play & Intelligent: Offers true plug-and-play installation, supports jumbo frames for efficient data transfer, and includes built-in fault diagnosis LEDs for easy troubleshooting.
- Compact & Low Power: Desktop design with low latency and minimal power consumption, making it an efficient and space-saving solution for various deployment scenarios.
Media Converter Description
SHENGWEI XFC811AB Single-Mode Single-Fiber Media Converter reliably converts between 10/100/1000BASE-T Ethernet and 1000BASE-X fiber optic signals over distances up to 3km. This device solves the need for network extension and electrical isolation in applications like campus networks, remote surveillance, and industrial Ethernet. Its plug-and-play operation and sturdy metal casing ensure easy deployment for IT integrators and telecom contractors. We supply this high-performance converter to wholesalers, system integrators, and OEMs seeking a cost-effective solution for robust point-to-point fiber links.
Fiber Media Converter Technical Sheet
| Parameter | Specification |
| Model | XFC811AB |
| Brand | SHENGWEI |
| Data Rate | 10/100/1000Mbps Auto-Negotiation (RJ45), 1000Mbps (Fiber) |
| Fiber Interface | SC |
| Fiber Type / Wavelength | Single-Mode Single-Fiber / Tx:1310nm, Rx:1550nm (or vice versa) |
| Transmission Distance | ≤ 3 km |
| Copper Interface | 1x RJ45 (Auto MDI/MDI-X) |
| Power Supply | DC 5V/1A |
| Housing | Metal Desktop Case |
| Operating Temperature | -20°C ~ +65°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 5% ~ 95% (Non-condensing) |

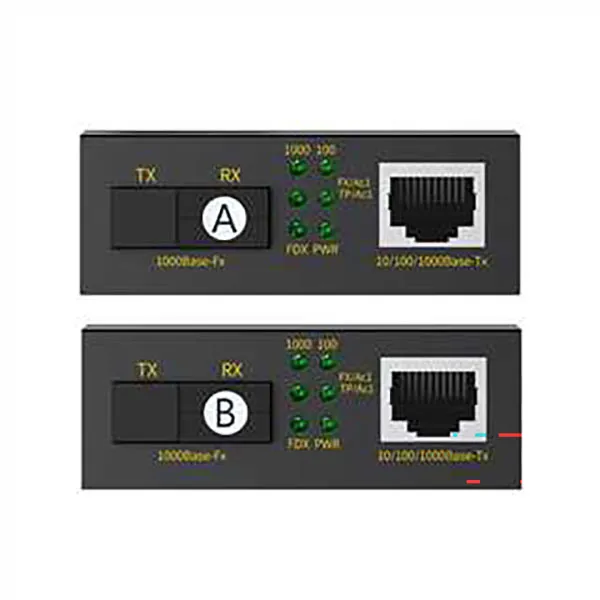

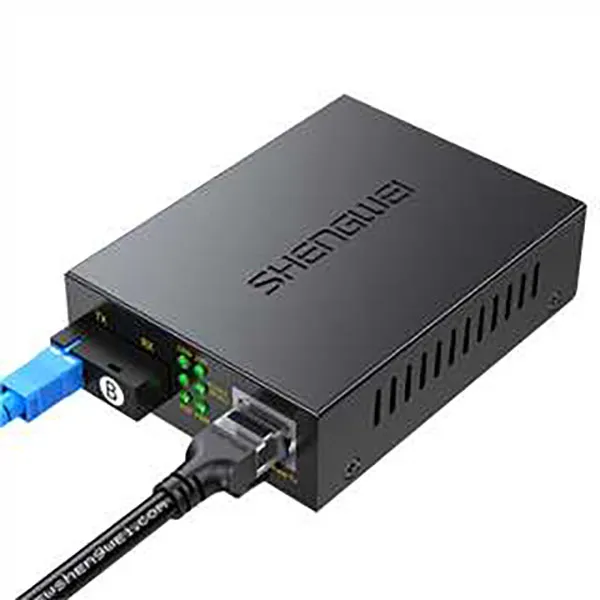

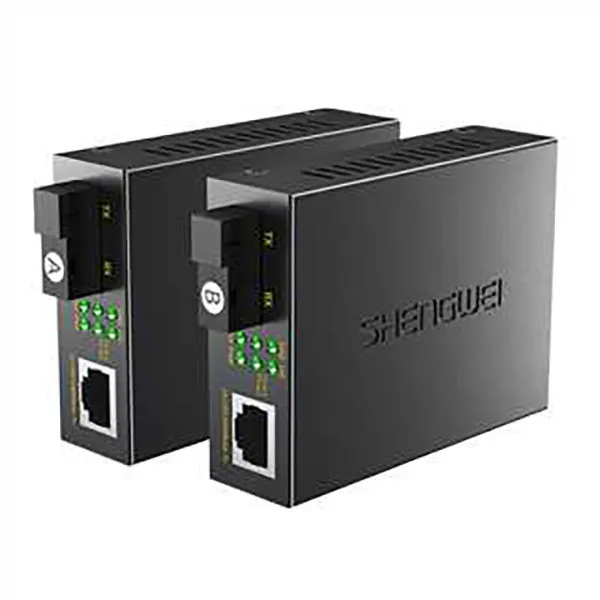

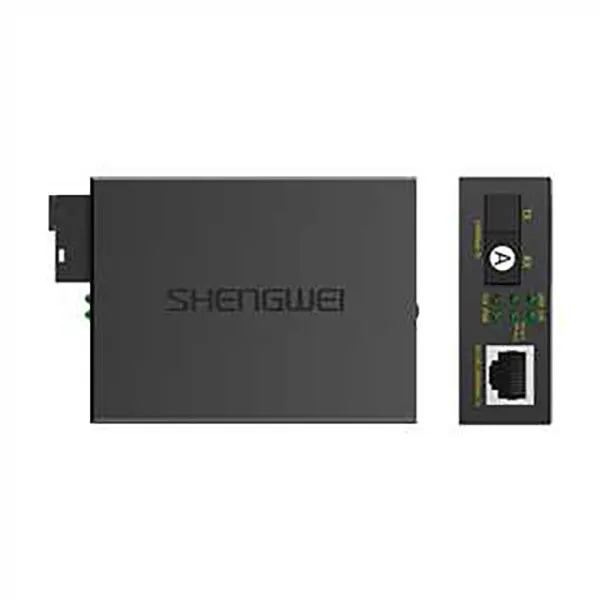

Detail Display
Fiber Media Converter Applications
1. Point-to-Point Network Links: Perfect for connecting two switches or networks in separate buildings up to 3km apart, such as between offices and a warehouse or across a campus.
2. Remote Device Connectivity: Ideal for linking isolated devices like IP cameras, wireless access points, or industrial PLCs back to a central network switch over fiber, providing noise immunity and longer reach.
3. Fiber Backbone Integration: Serves as an access point converter to integrate copper-based LAN equipment (like PCs or local switches) into an existing single-fiber backbone network efficiently.
Industrial Media Converter Product Features
The XFC811AB fiber media converter combines industrial-grade durability with advanced networking capabilities, featuring a robust metal housing that dissipates heat effectively and provides EMI protection for stable operation in demanding environments. Its intelligent design incorporates CPU-based real-time monitoring that continuously checks both electrical and optical interfaces, while built-in support for jumbo frames up to 9KB enables efficient large data packet transmission for surveillance and data-intensive applications. The device’s wide operating temperature range (-20°C to +65°C) and plug-and-play installation make it suitable for both controlled indoor environments and challenging outdoor installations where reliable network extension is critical.
