Dual Mode Auto-Sensing 1GE XPON ONU for FTTH
SHENGWEI 1GE Dual Mode XPON ONU delivers stable 20KM fiber access for FTTH. As a reliable manufacturer, we support bulk & OEM orders.
Dual Mode Auto-Sensing: Compatible with GPON Class B+ & EPON PX20+
1 Gigabit Ethernet Port: 10/100/1000Mbps adaptive for high-speed data
Compact Size: 90.4×75×26mm, lightweight & easy to deploy
Low Power Consumption: <3W, energy-saving & stable operation
Full Certifications: FCC Class A, CE, RoHS for global market
XPON ONU Description
SHENGWEI offers the Auto-Sensing 1GE XPON ONU for FTTH, featuring dual GPON/EPON compatibility and 20KM transmission. With 1 Gigabit LAN port, compact 90.4×75×26mm size and <3W low power, it ensures stable performance. Certified by FCC Class A, CE and RoHS, this factory-direct ONU fits residential and business use. We provide bulk supply, OEM customization and full support for global distributors and ISPs.
XPON ONU Technical Data Sheet
| Parameters | Specifications |
| PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) |
| Upstream: 1310nm, Downstream: 1490nm | |
| SC/APC connector | |
| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: 0~+4dBm | |
| Transmission distance: 20KM | |
| LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. |
| 10/100/1000M Full/Half, RJ45 connector | |
| LED | 4 LED, For Status of POWER, LOS, PON, LAN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition | Temperature : 0ºC~50ºC |
| Humidity :10%~90%(non-condensing) | |
| Storing Condition | Temperature : -40ºC~+60ºC |
| Humidity :10%~90%(non-condensing) | |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
| Data | Data Interface: Ethernet |
| Data Rate:10/100/1000 Mbps | |
| Dimensions | 90.4mm * 75 mm * 26mm |
| Emissions | FCC , Class A, RoHS, CE Mark |

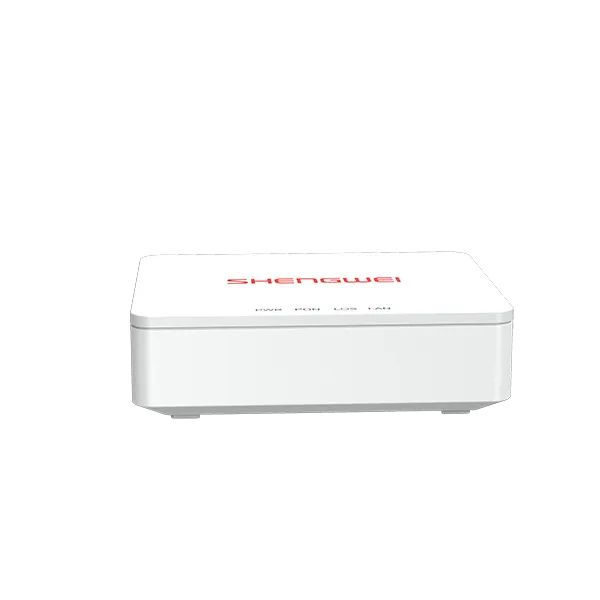

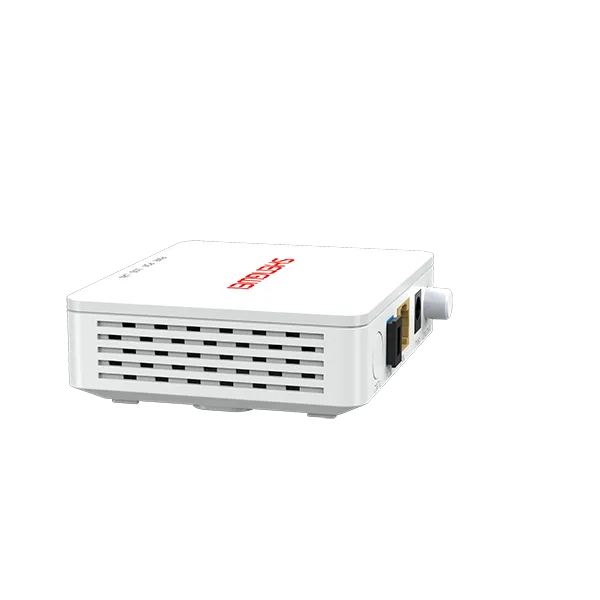

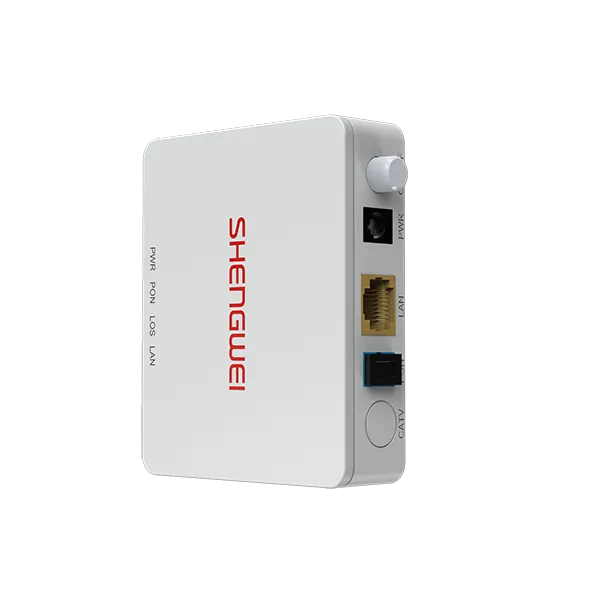

Detail Display
XPON ONU Applications
Widely used in FTTH, FTTO and FTTB broadband access. Suitable for residential households, small offices, ISPs and rural fiber projects. It provides stable gigabit data transmission for internet surfing, HD video and office services, supporting bulk wholesale for global operators and distributors.
More About the ONU
1. WiFi 6 ONU Key Specifications
The SHENGWEI WiFi 6 ONU supports IEEE 802.11ax standards, delivering dual-band speeds up to 1200Mbps. It features a flexible 1GE + 3FE + 1*POTS port configuration and supports both GPON and EPON modes. Built with industrial-grade hardware, it operates reliably in temperatures from -40°C to +85°C, making it suitable for global deployments.
2. FTTH Terminal Advanced Features
This FTTH Terminal includes Smart Diagnosis for remote fault detection and recovery, minimizing maintenance costs. It utilizes Intelligent QoS to prioritize voice and video traffic, ensuring lag-free performance. The device supports WPA3 security and TR-069 management, while its compact, wall-mountable design saves space in any home or office.
3. Wholesale ONU Benefits for Telecom Partners
As a factory-direct supplier, we offer competitive wholesale pricing to maximize your margins. We provide full OEM/ODM customization, including firmware, logo, and packaging. Backed by a 3-year warranty and lifetime technical support, our ONUs ensure high stability and a low failure rate, making them the ideal choice for bulk deployment.
