Fiber Optic Terminal Box

4-Port 4-Core Single-mode SC Full-Loaded Fiber optic terminal box

The fiber optic cables are easy and flexible to use, and there is ample storage space for them.
Compact structure, small size, light weight, and available in a variety of sizes.

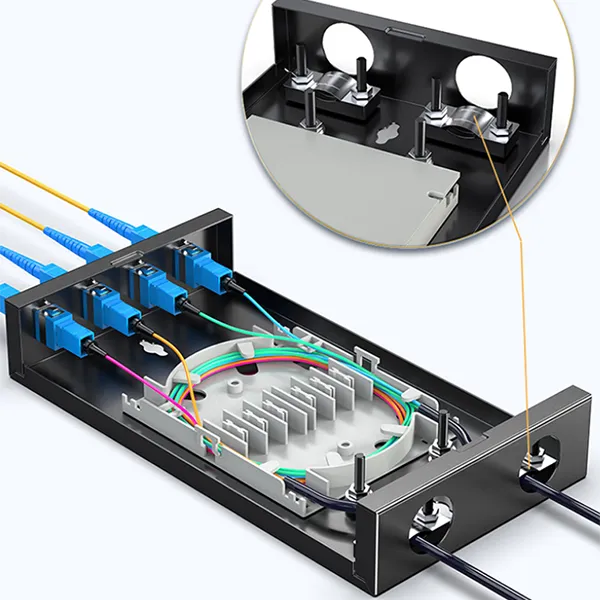

Multiple fiber optic cable fixing points on the back make fiber insertion convenient and flexible, and facilitate fiber optic cable stripping and protection.
The bending radius of optical fibers and pigtails shall not be less than 30mm.

Get A Free Quote

Products Categories

PON Networks

Optical Line Terminal (OLT)

Optical Network Unit (ONU)

Optical Splitter

Fiber Optic Cables

Optical Cable

Drop Cable Patch Cord

Indoor Fiber Optic Patch Cord

Fiber Accessories

Fiber Splice Closures

Fiber Distribution Box

Optical Distribution Frame

Fiber Optic Terminal Box

Fiber Optic Wall Plate

Fiber Optic Quick Connector

Fiber Optic Coupler

Fiber Splice Protectors

Fiber Optic Testers & Tools

Fiber Optical Transceivers

Fiber Media Converters

Copper Systems

Bulk Copper Cables

Copper RJ45 Connectors

Get A Free Quote

Fiber Optic Terminal Box Description

Fiber optic terminal boxes are used in data network communication, offering convenient and flexible fiber optic cable entry and exit. They feature ample fiber optic storage space, a compact structure, small size, light weight, and a variety of specifications to choose from. They provide higher performance and efficiency for your data center cabling.
1. Ambient temperature: -20°C to +60°C.
2. Relative humidity: 95% (at +40℃)
3. Easy to open repeatedly.

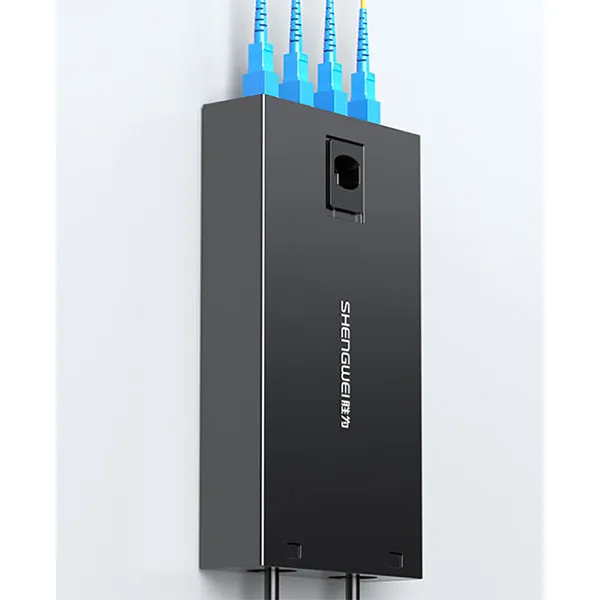

4. Can be installed on a desktop or wall-mounted.
5. Protect the optical fiber throughout the entire process and ensure that its bending radius is ≥40mm.
6. Easy and quick to operate and maintain.

Fiber optic terminal box Datasheet

Item	Specification
Material of housing	Cold-rolled steel sheet
Function	Fiber optic splice protection & distribution
Guaranteed Bend Radius	≥ 40mm
Insertion Loss	≤ 0.01 dB (typical)
Standard Pigtail Length	≥ 1.6m
Fiber Capacity	SC Adapters:4 fibers

Fiber optic terminal box Applications

Ideal for FTTH (Fiber to the Home), FTTB (Fiber to the Building), and FTTC (Fiber to the Curb) network architectures.

FAQs

Q1: What is the primary function of this Fiber Optic Termination Box?

A: Its core function is to protect, organize, and manage fiber optic splices and terminations in a data network. It serves as a centralized access point, providing a secure enclosure for splicing fibers, storing excess cable slack, and connecting to patch panels or active equipment, thereby ensuring signal integrity and simplifying maintenance.

Q2: Where is this termination box typically used?

A: It is ideally suited for: Data Centers: For high-density patching and distribution. Telecommunication Rooms / Main Distribution Frames (MDFs): Centralized fiber management. Fiber-to-the-Home (FTTH) Networks: As a termination point in multi-dwelling units (MDUs) or building entry points. Enterprise & Campus Networks: For structured cabling and backbone terminations.

Q3: What are the key advantages of this design?

A: The key advantages include its high port density (up to 288 fibers with LC), compact and lightweight form factor that saves rack space, and a robust protective design that guarantees a ≥40mm bend radius for optimal fiber performance and longevity.
