CRJ6100 30U Gold Plated Cat6 RJ45 Connectors
SHENGWEI Cat6 RJ45 plugs feature 30U gold-plated contacts and a 1.1mm enlarged entry hole for secure, high-performance terminations. Essential for network installers.
- Enhanced Conductivity & Durability: Features 30-micron (30U) thick gold plating on pure copper contacts for superior signal transmission, oxidation resistance, and long-lasting performance through repeated mating cycles.
- Engineered for Easy Termination: The 1.1mm enlarged wire entry hole and integrated lead-in funnels facilitate easier insertion of thicker 23AWG Cat6 solid conductors, reducing installation time and errors.
- Reliable Contact Design: Utilizes a three-pronged contact (fork-type) design that bites into the conductor from three sides, ensuring a gas-tight, stable connection that resists vibration and pull-out.
- Professional-Grade Compliance: Constructed with ROHS-compliant, high-quality plastic and designed to meet TIA/EIA-568-C.2 standards for Cat6 performance, making it suitable for both commercial and residential installations.
Cat6 RJ45 Connectors Description
SHENGWEI CRJ6100 Cat6 RJ45 Connectors are engineered for reliable, high-speed network terminations. These modular plugs ensure stable Gigabit Ethernet performance by utilizing 30U gold-plated contacts to prevent corrosion and an enlarged 1.1mm entry hole for easier wire loading. They solve critical needs for durability and signal integrity in data cabling projects for data centers, office networks, and home installations. We supply these professional connectors in bulk packs to network installers, IT distributors, and system integrators seeking cost-effective, high-quality components for their structured cabling work.
Cat6 RJ45 Connectors Technical Sheet
| Parameter | Specification |
| Model / SKU | CRJ6100 |
| Category / Performance | Category 6 (Supports Gigabit Ethernet & beyond) |
| Contact Plating | 30 Microns (30U) Gold over Nickel underplate |
| Contact Material | Phosphor Bronze |
| Wire Entry Hole Diameter | 1.1 mm ± 0.02mm |
| Compatible Conductor Type | Solid or Stranded (23-24 AWG recommended) |
| Conductor Diameter Range | 0.95 mm ~ 1.0 mm |
| Housing Material | ROHS-Compliant, High-Temperature Plastic (PC) |
| Wiring Scheme | Compatible with T568A and T568B Standards |
| Packaging Options | 30 pcs, 50 pcs, 100 pcs (as per material) |
| Certification / Compliance | ROHS, Complies with TIA/EIA-568-C.2 |

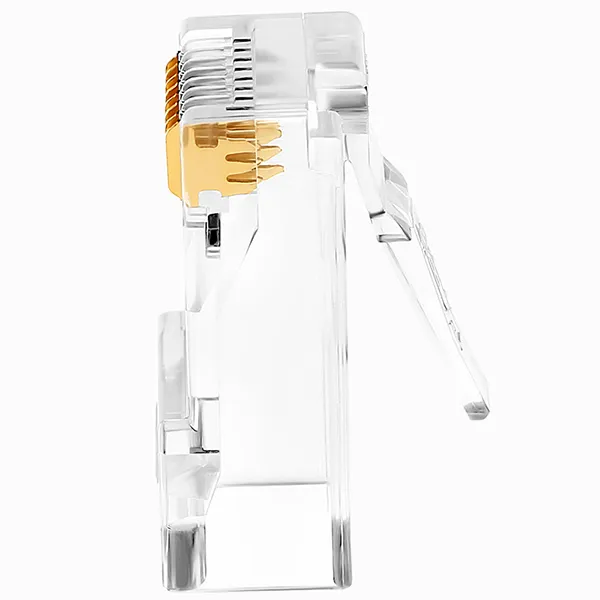

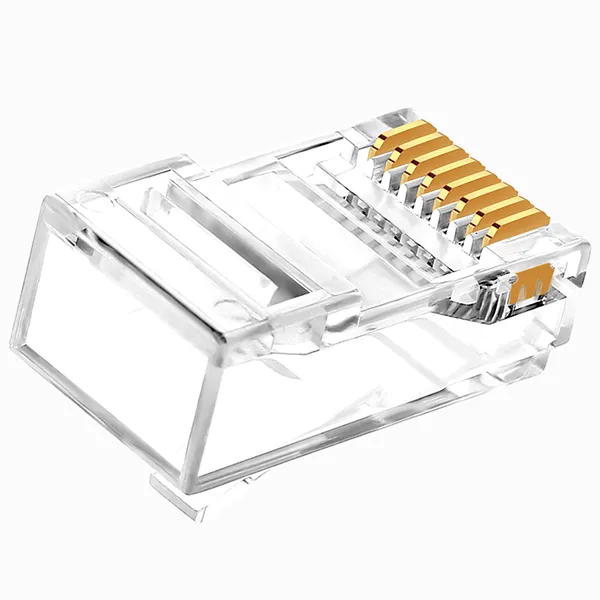

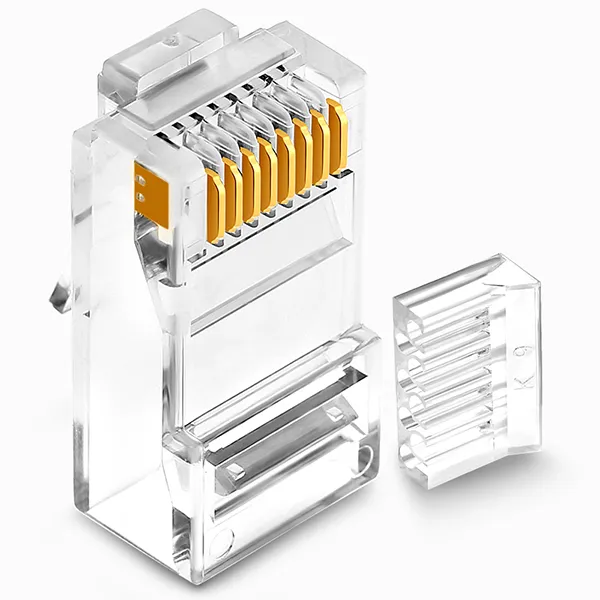

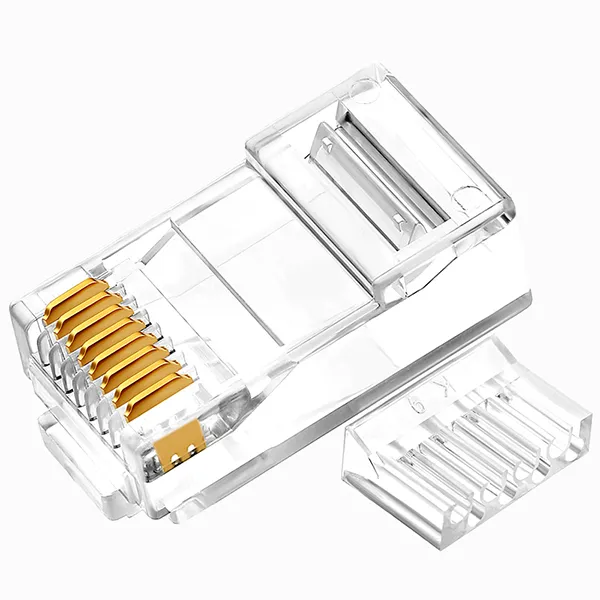

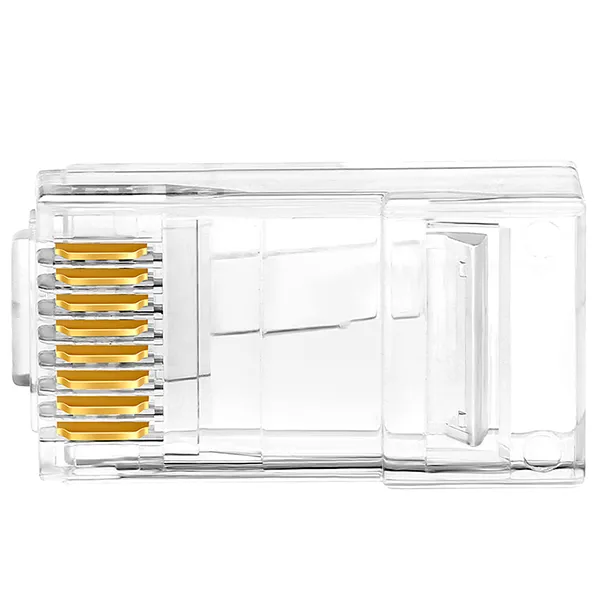

Detail Display
Cat6 RJ45 Connectors Applications
1. Structured Cabling System Installation: Ideal for patch panel and outlet terminations in new building constructions, office fit-outs, and data center builds where reliable, certified channel performance is required.
2. Field Termination & Repair Work: Perfect for technicians creating custom-length patch cords on-site, repairing damaged cable ends, or terminating drops in hard-to-reach areas, thanks to the user-friendly design.
3. High-Use Commercial Environments: Suited for terminations in schools, hotels, internet cafes, and conference rooms where connectors face frequent plugging/unplugging and require the durability of thick gold plating.
Gold-Plated RJ45 Connector Key Features
The SHENGWEI CRJ6100 connector prioritizes electrical performance and installer efficiency. The substantial 30U gold plating over a pure copper contact base minimizes signal attenuation and ensures a low-resistance connection that withstands environmental factors. Its housing is designed with clear color-coded channels and alignment bars according to T568A/B wiring standards, while the three-pronged contact design pierces the cable insulation to make direct, reliable contact with the conductor for a termination that maintains performance over time.
