CLC6A57C CAT6a SFTP Shielded 10G Network Cable 100m/305m
SHENGWEI CAT6a SFTP cable features OFC copper conductors, dual shielding, and supports 10G speeds up to 100m. Ideal for data centers and network installers.
- 10G Performance & High Bandwidth: Certified for 10 Gigabit Ethernet transmission up to 100 meters with a 600MHz bandwidth, ensuring reliable, high-speed data transfer for demanding applications.
- Premium OFC Conductors & Construction: Uses 23AWG Oxygen-Free Copper (OFC) conductors and a precise 100±6Ω impedance design for superior signal integrity and minimal loss over distance.
- Enhanced Shielding & Durability: Features dual shielding (Aluminum Foil + Tinned Copper Braid) and a robust LSZH (Low Smoke Zero Halogen) jacket for excellent EMI protection and safety in commercial environments.
- Optimized for Professional Installation: Designed with a durable structure meeting strict bend radius (5x cable diameter) and tensile strength (110N max during installation) specifications for reliable deployment.
CAT6a Ethernet Cable Description
SHENGWEI CAT6a SFTP Shielded Network Cable provides a future-proof, high-performance backbone for 10 Gigabit Ethernet networks. This cable solves critical needs for EMI protection and signal integrity in data centers, server rooms, and industrial automation. Its Oxygen-Free Copper (OFC) cores and dual-shielded (SFTP) design ensure stable, high-speed data transmission. We supply this professional-grade cable to network contractors, system integrators, and IT distributors for bulk installations requiring reliability. For demanding environments like enterprise wiring closets or between network switches, this cable delivers a robust and compliant CAT6a/Class Ea channel solution.
CAT6a Ethernet Cable Technical Sheet
| Parameter | Specification |
| Model / SKU | CLCC6A (Example, as per material) |
| Category / Standard | CAT6a / ISO/IEC 11801 Class Ea |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Conductor Gauge (AWG) | 23 AWG (0.58mm diameter) |
| Shielding Type | SFTP (Screened Foiled Twisted Pair): Individual Pair Foil + Overall Braid |
| Shielding Composition | Aluminum Foil (65µm) + Tinned Copper Braid (128 strands) |
| Jacket Material | Low Smoke Zero Halogen (LSZH), Flame Retardant |
| Cable Diameter | 8.5 mm ± 0.25mm |
| Nominal Impedance | 100Ω ± 6Ω |
| Maximum Frequency / Bandwidth | 500 MHz (Compliant for 10GBASE-T up to 100m) |
| Operating Temperature | -10°C to +60°C (Use); 0°C to +40°C (Installation) |
| Bend Radius | Minimum 5x Cable Diameter (During & After Installation) |
| Maximum Tensile Load | 110 N (Short-term during installation), 20 N (Long-term) |
| Standard Lengths | 100 meters, 305 meters (on reel) |
| Performance | Certified for 10 Gigabit Ethernet transmission up to 100 meters |

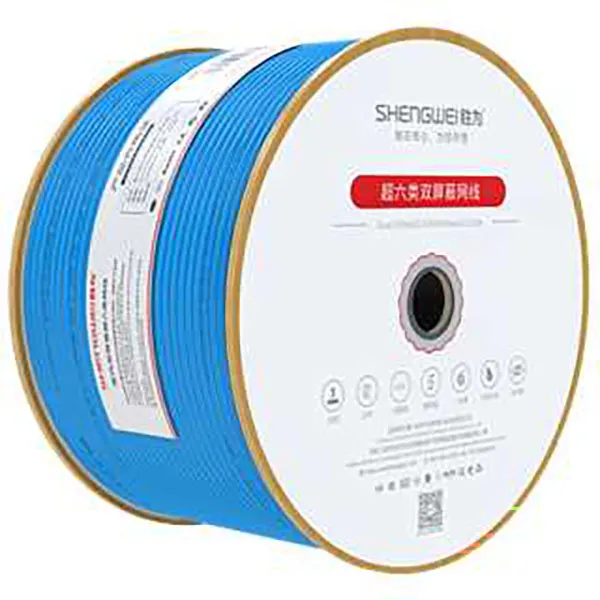

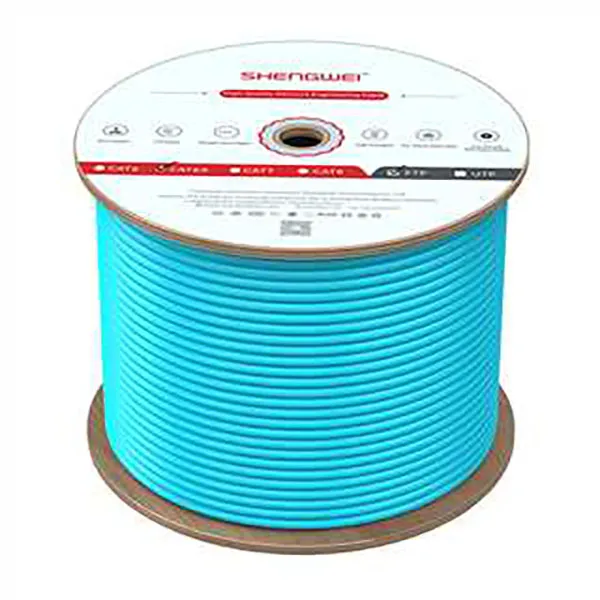

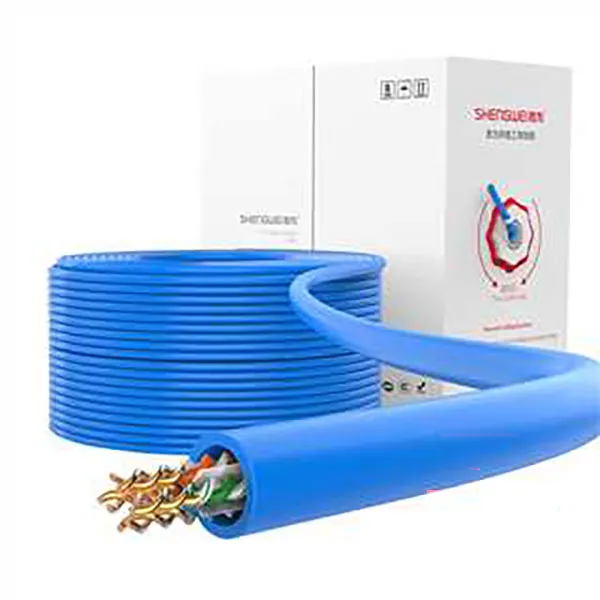

Detail Display
CAT6a Ethernet Cable Applications
1. High-Density Data Centers & Server Racks: Essential for connecting top-of-rack switches, servers, and storage units where multiple high-speed cables run in parallel, minimizing crosstalk and ensuring 10G link stability.
2. Industrial & Laboratory Settings: Ideal for manufacturing floors, medical imaging rooms, or labs with heavy machinery, where the dual shielding protects data signals from strong external electrical noise.
3. Enterprise Core Network Backbones: Used for vertical risers or horizontal runs in office buildings where future-proofing for 10G, PoE++ applications, and superior alien crosstalk performance are critical requirements.
More Details
High-Performance Ethernet Cable Key Features
The SHENGWEI CAT6a SFTP cable integrates premium Oxygen-Free Copper (OFC) conductors with a precision-engineered dual-shielded construction to deliver unparalleled signal integrity and interference immunity for 10 Gigabit Ethernet networks. Its robust design combines 23AWG thick-gauge conductors for reduced insertion loss with a layered shielding system of aluminum foil and tinned copper braid that effectively blocks both electromagnetic (EMI) and radio frequency (RF) interference. The cable’s LSZH (Low Smoke Zero Halogen) jacket provides critical safety benefits in commercial installations by minimizing toxic smoke emission during fire incidents, while its optimized twist ratios and pair separation maintain consistent 100±6Ω impedance for reliable high-speed data transmission across the full 100-meter channel length.
Shielded Network Cable Technical Specifications
This enterprise-grade CAT6a cable meets and exceeds international standards for 10GBASE-T performance with 500MHz bandwidth capacity and full compliance with ISO/IEC 11801 Class Ea specifications. The technical architecture features four individually foil-shielded twisted pairs surrounded by a comprehensive 128-strand tinned copper braid, creating a complete Faraday cage that ensures signal purity in high-interference environments. Electrical characteristics include precise 100Ω impedance control within ±6% tolerance, near-end crosstalk (NEXT) performance exceeding standard requirements, and propagation delay optimized for time-sensitive applications. Physical specifications include 8.5mm outer diameter with ±0.25mm tolerance, minimum bend radius of 42.5mm (5× cable diameter), and tensile strength ratings of 110N for installation and 20N for permanent loading conditions across operational temperatures from -10°C to +60°C.
