1U Compact 2-Port GPON OLT – High-Speed for Modern Networks
WGP58-02 Dual-Port GPON OLT: 1U compact, 51.5Gbps, ideal for enterprises needing multi-ONU integration.
● Rich Layer 2/3 switching & flexible management for compact GPON OLTs
● Supports STP/RSTP/LACP link redundancy (enterprise-grade reliability)
● Compatible with RIP/OSPF routing protocols for FTTx networks

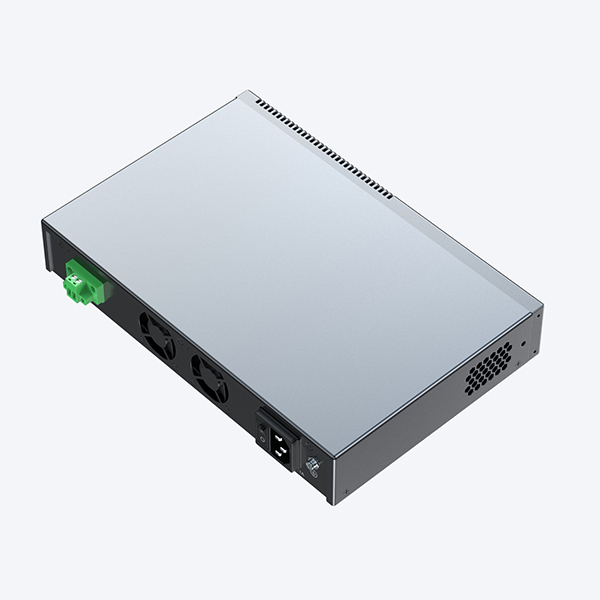

● Dual-power backup & modular supply for industrial GPON deployments
2-Port GPON OLT Description
As a trusted exporter, we offer the WGP58-02 Dual-Port GPON OLT, adhering to ITU-T G.984/G.988 standards. With 51.5Gbps capacity, 1:128 splitting ratio, and multi-uplink ports, it meets FTTx deployment needs of telecom carriers and ISPs. The 1U space-saving design (270×180×44mm) and dual-power redundancy ensure reliable operation, providing cost-effective bulk solutions for network distributors.
GPON OLT Technical Sheet
| pecification Category | Details |
| Basic Information | Model: WGP58-02; Product Name: 2-Port GPON OLT |

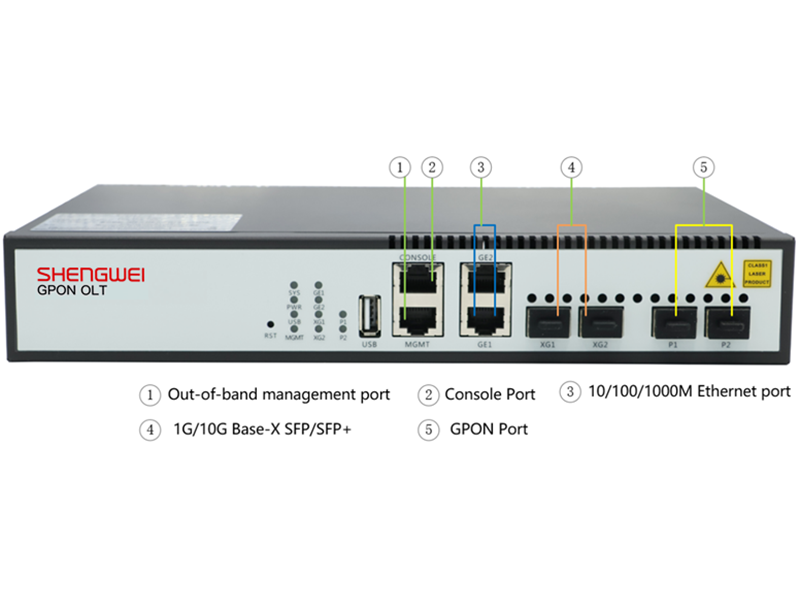

| Interface Configuration | – 2×GPON ports (SC/PC, single-mode, 1490nm/1310nm) |
| – 2×10/100/1000M Base-T uplink ports | |
| – 2×1000M Base-X SFP/2×10GE SFP+ uplink ports | |
| – 1×Console Port + 1×Management Port + 1×USB Port | |
| Core Performance | – Exchange Capacity: 51.5Gbps |
| – Packet Forwarding Rate: 59.7Mpps | |
| – Max Splitting Ratio: 1:128 | |
| – Transmission Distance: Physical 20KM, Logical 60KM | |
| Hardware Parameters | – Memory: 512MB |
| – Storage: 32MB | |
| – MAC Address: 16K | |
| – Packet Buffer: 12Mbit | |
| – Weight: ≤2kg | |
| – Power Consumption: ≤30W | |
| – Dimensions (W×D×H): 270mm×180mm×44mm | |
| – Fan: 2×Fixed Fans | |
| Power Supply | – AC: 100～240V, 47/63Hz |
| – DC: 12V/2.5A | |
| – Optional Dual Power Backup (AC+DC/DC+DC) | |
| Environmental Adaptability | – Working Temperature: -10℃～55℃ |
| – Storage Temperature: -40℃～70℃ | |
| – Operating Humidity: 10%～95% (non-condensing) | |
| – Storage Humidity: 10%～95% (non-condensing) | |
| Compliance & Certification | ITU-T G.984/G.988 Standards |
| China RoHS, EEE | |
| Key Software Features | – Supports 4K VLAN, STP/RSTP/MSTP, RIP/OSPF |
| – ACL, QoS (SP/WRR/SP+WRR scheduling) | |
| – Multi-vendor ONU compatibility, batch ONT upgrade | |
| – Management: CLI/Telnet/WEB/SNMP V1/V2/V3/SSH2.0 |
Detail Display
GPON OLT Applications
1. FTTH access networks for telecom carriers: 1:128 splitting ratio meets dense user broadband deployment needs;
2. Government/enterprise/campus networks: 1U compact size saves equipment room space, dual power backup ensures uninterrupted critical services;
3. Broadband services for small and medium ISPs: Multi-uplink ports (GE/SFP/10GE SFP+) flexibly adapt to different bandwidth plans, reducing networking costs;
4. Smart community/campus networking: Supports mixed networking of multi-brand ONUs, adapting to IoT device access such as access control and monitoring;
5. Remote area communication coverage: 20KM physical transmission distance + wide operating temperature range (-10℃~55℃) for complex environment deployment.
More Details

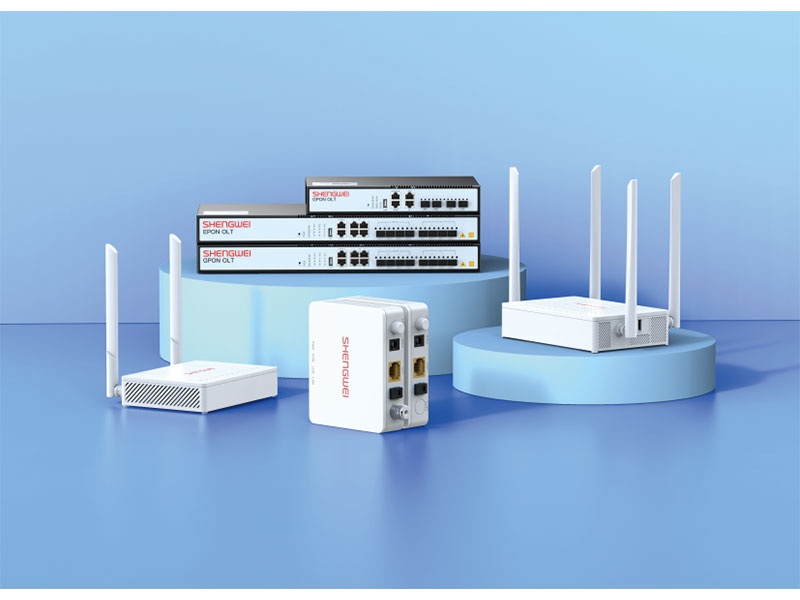

Solution Display
The PON system usually consists of the OLT at the office side, the ONU and the ODN at the user side, and adopts a point-to-multipoint network structure. The ODN consists of single-mode optical fibers and passive optical devices such as optical splitters and optical connectors. It provides the optical transmission medium for the physical connection between the OLT and ONU. Implement FTTX service deployment application.
The GPON system usually consists of the OLT at the office side, the ONU and the ODN at the user side, and adopts a point-to-multipoint network structure. The ODN consists of single-mode optical fibers and passive optical devices such as optical splitters and optical connectors. It provides the optical transmission medium for the physical connection between the OLT and ONU. Implement FTTX service deployment application.
